Width 200-1000mm And The Height 50-200m Adjustable Cable Tray Forming Machine With Hydraulic Punching And Cutting

Product Description:

Cable tray roll forming machine is widely used for cable management in commercial and industrial industries. It has the capability to generate various kinds of cable trays, such as solid bottom, trough, channel, perforated, non perforated, and trunking. Moreover, these cable channels are made of hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel, and aluminum, with thickness levels ranging from 0.6mm to 1.2mm, or 1 to 2mm.

This machine is also adjustable in terms of the lengths of the cable tray, with ten settings available in this regard. In addition to cable management system roll formers, we are also capable of building strut channel roll forming machine, DIN rail roll forming machine, and Electrical Enclosure Box roll formers.

Features:

This machine's technical data includes the following specifications.
The suitable plate materials are made of 1-2mm cold rolled steel and galvanized steel, with profile width after forming measuring 100-600mm and height of profile 50-150mm, and a sheet length of 2000 to 6000mm. The speed of the machine is about 2-3 meters/min requiring about 20 stations.

The material of roller is Cr12 with quenching HRC58-62 and plated chrome, while the material of shaft is 45# Advanced Steel with a diameter of 90mm and thermal refining. This machine is driven by chain and has 22KW WH Chinese Famous main power with reducer. It is watched over by the Hydraulic Cutting Cr12mov, material of cutting knife is Cr12Mov, quenching HRC58-62, and industry computer-PLC controlling the machine.

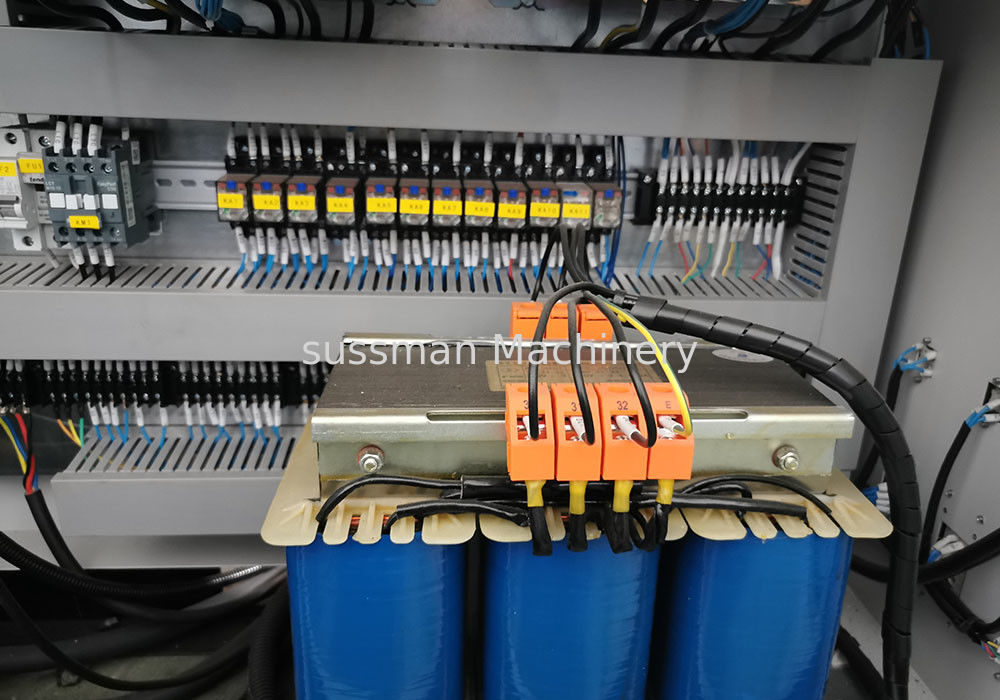

The PLC is a Delta, while the encoder is Omron Japan. The electric parts are all Schneider, which adjust the width by the motors and the rails, also controlled by PLC.

Technical Parameters:

Applications:

Sussman’s Cable Tray Roll Forming Machine (RF-CT) is widely used in the cable tray manufacturing industry. It is produced in Wuxi, China with certification of CE, SGS, and ISO. This professional production machine is designed with hydraulic cutting, a shaft diameter of 45# steel and a control system of PLC with encoder of Omron.

The machine is capable of producing cable tray profiles with heights ranging from 50 to 200mm. It is reliable and efficient with high-precision and excellent performance. It is perfect for cable tray production. All the production processes are automatically controlled by the PLC system. The Omron encoder also ensures high accuracy.

Sussman’s Cable Tray Roll Forming Machine is the ideal choice for cable tray manufacturing, cable tray production and cable tray roll forming. It is the perfect machine for achieving high-quality standards and saving time. It is also cost-effective and easy to operate.

Customization:

We offer you a customized Cable Tray Roll Forming Machine by Sussman, with model number RF-CT. The machine is designed and manufactured in Wuxi, China and certified by CE, SGS, ISO. The main motor power is 22Kw,18.5KW, and the encoder is from Omron. The working speed is 12-15 Meters / Min, and the power supplier is 380V, 50 Hz, 3Phase. The pump is from Bosch.

This Cable Tray Manufacturing Machine is the perfect product for those who need to produce cable trays, meeting the highest standards of quality. It is easy to operate, with a user-friendly interface and a highly efficient working speed.

Our Cable Tray Production Machine is guaranteed to meet your needs, providing reliable and accurate production of cable trays. With our customized service, you can get the perfect machine for your needs.

Support and Services:

We provide comprehensive technical support and service for Cable Tray Roll Forming Machine. We have experienced technicians who can provide professional installation, maintenance, and troubleshooting services to ensure your machine is operating correctly.

We also offer regular maintenance packages, so you can be sure your machine is always functioning properly. In addition, we carry a wide range of spare parts and accessories for easy replacement and repair.

We are always available to answer any questions or concerns you may have about your Cable Tray Roll Forming Machine. Contact us today to learn more about our technical support and service!

Packing and Shipping:

The cable tray roll forming machine will be securely fixed in the container to avoid damage during transportation. The machine will be wrapped in plastic and then packed in a wooden box. Before delivery, we will ensure that the machine is working properly and in good condition.

We provide both domestic and international shipping services. Shipping fees and delivery times vary depending on the destination. We can provide you with a full range of service options, including door-to-door delivery, port-to-port delivery, and more.
