Galvanized Steel Coils Cable Tray Manufacturing Machine With 45# Steel Shaft

Product Description:

In commercial and industrial construction, the Cable Tray Roll Forming Machine is extensively used for cable management. This cutting-edge roll forming system can offer flexible production of multiple types of cable trays, such as solid bottom cable tray, trough cable tray, Channel cable tray, Perforated cable tray, Non perforated cable tray, and Trunking cable tray. Not only it brings convenience, but it also helps to enhance productivity by facilitating faster production. < /p>

It can process with wide-ranging raw materials, including hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel, and aluminum. In addition, the thickness of the material can be adjusted from 0.6mm-1.2mm or 1-2mm. It also allows the change of the lengths for the cable tray to be done with ease. Apart from the cable tray roll forming machine, Electrical Industries is also able to manufacture strut channel roll forming machine, DIN rail roll forming machine and Electrical Enclosure Box roll forming machine.

Features:

The technical data for this machine includes suitable plate material such as cold rolled steel and galvanized steel with a thickness of 1-2mm and a profile width that can be adjusted from 100-600mm, with a profile height of 50-150mm and a sheet length of 2000-6000mm. It has a working speed of 2-3 meters per minute with 20 forming steps and has a material for the rollers of Cr12, quench HRC58-62 plated chrome. The material of the shaft is 45# advanced steel with a diameter of 90mm, thermal refining. It has a chain driven system and a main power with reducer of 22KW WH Chinese Famous. The cutting is done with hydraulic cutting Cr12mov and the material for the cutting knife is Cr12Mov, quench HRC58-62. The whole machine is controlled by an industry computer which is a PLC with Delta ​​encoder and Schneider electric parts. Additionally, the width is adjustable and is controlled with the PLC system.



Technical Parameters:

Parameter	Value
Width of the profile	200-500mm
Pump	Bosch
Power supplier	380V, 50 Hz, 3Phase
Material of Roller	Gcr15, Quench HRC58-62 Plated Chrome
Material Thickness	0.8mm-2.0mm,1.5-3.0mm
Height of the profile	50-200mm
Main motor power	22Kw,18.5KW
Rollers	18-20
Roller material	GCr15
Shaft diameter	45# Steel



Applications:

The Sussman Cable Tray Roll Forming Machine (RF-CT) is a highly versatile tool that is used for cable tray manufacturing. It is manufactured in Wuxi, China and has received certifications from CE, SGS, and ISO. This machine is designed to roll form galvanized steel coils into a cable tray and it is powered by a 380V, 50 Hz, 3Phase power supply. The machine features a 45# steel shaft, an Omron encoder, and GCr15 rollers. All of these components are designed to provide a high-quality and efficient cable tray manufacturing process.

The Sussman Cable Tray Roll Forming Machine is a great choice for any industry that needs to produce cable trays, such as construction, electrical, and communication. It can be used to produce various sizes of cable trays, including small, medium, and large. This machine is capable of producing cable trays with a high degree of accuracy and precision. It is also highly efficient, resulting in minimal waste and maximum productivity. The Sussman Cable Tray Roll Forming Machine is a reliable and durable machine that will last for years to come.

The Sussman Cable Tray Roll Forming Machine is a great choice for any industry that needs to produce cable trays. It is a high-quality machine that is designed to provide a reliable and efficient cable tray manufacturing process. The 45# steel shaft, Omron encoder, and GCr15 rollers are all designed to ensure a high-quality and efficient cable tray manufacturing process. It is also highly efficient, resulting in minimal waste and maximum productivity. The Sussman Cable Tray Roll Forming Machine is a reliable and durable machine that will last for years to come.



Customization:

Customized Service for Cable Tray Roll Forming Machine

Brand Name: Sussman
Model Number: RF-CT
Place of Origin: Wuxi, China
Certification: CE, SGS, ISO
Height of the profile: 50-200mm
Main motor power: 22Kw,18.5KW
Power supplier: 380V, 50 Hz, 3Phase
Material Thickness: 0.8mm-2.0mm,1.5-3.0mm
Control System: PLC Control

Our Cable Tray Manufacturing Machine, Cable Tray Roll Machine and Cable Tray Forming Machine are ideal for your cable tray production.



10 ton hydraulic decoiler with coil car

Servo feeder

Servo feeder

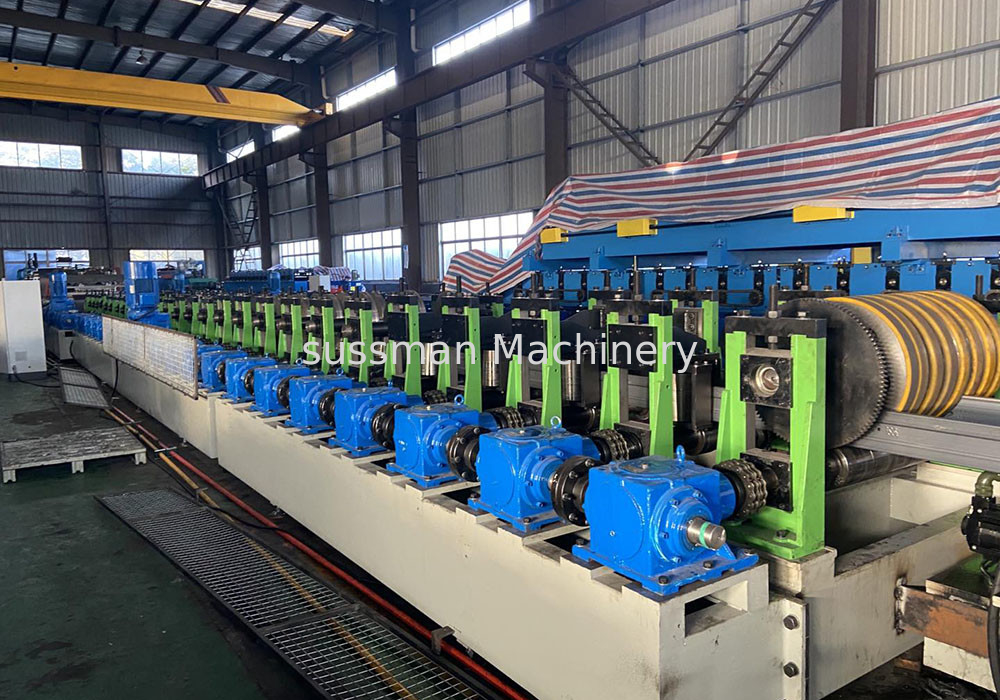

Main roll forming machine

Hydraulic cutting device

Support and Services:

We provide technical support and service for our Cable Tray Roll Forming Machine, which includes:

• Comprehensive pre-sales and after-sales services
• Free training for machine installation and maintenance
• Helping with machine troubleshooting and maintenance
• Providing technical advice for machine customization
• Providing spare parts and accessories for the machine
• Providing warranty for the machine



Packing and Shipping:

Packaging and Shipping of Cable Tray Roll Forming Machine:

The Cable Tray Roll Forming Machine will be carefully packaged in wooden cases and pallets to make sure that it is undamaged and secure during transportation. All the components of the machine will be securely strapped with plastic straps to prevent any damage. The customer will be contacted to arrange the shipping details if required.
