Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |

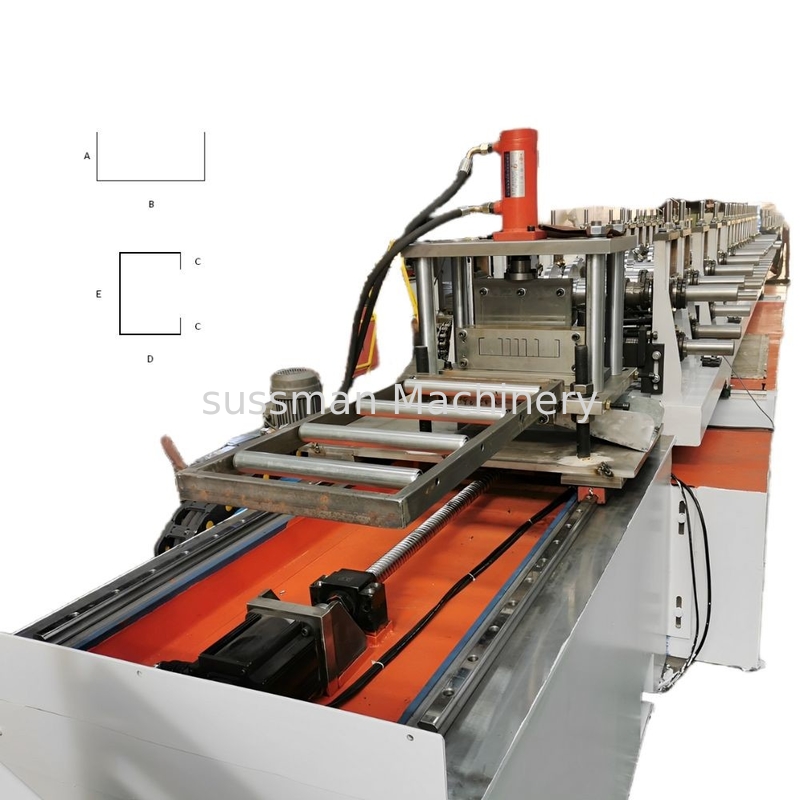

6 In 1 Width Automatic Adjustable C U Stud Track Drywall Roll Forming Machine
This machine is for multiple sizes, 6 sizes in one machine, width automatically adjustable.
Technical data
| Items | Specifications | |
| Material of coil | Material Thickness | 0.3-1.2mm galvanized steel |
| De-coiler | Weight | 3 ton passive decoiler |
| Forming system | Rolling Speed | 10 m/min |
| embossing | 1 set of rolls | |
| Roller Stations | About 13 stations forming | |
| Roller Material | Cr40 Steel with quenching | |
| Shaft Material |
45# Steel Diameter 75mm shaft
|
|
| Maim Motor Power | 5.5 kw | |
| Hydraulic cutting Power | 4 kw | |
|
Cutting system |
Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Cutting blade | 1 set of cutting blade | |
| Electrical control system | Electric Source | 380, 50HZ,3 phases |
| Control System | PLC Delta | |
| Weight | About 4 tons | |
| Way Of Drive | 1 inch single chain | |
| Size of machine | Length 7500mm* Width 600mm* Height 800m |
Working Flow:
Decoiler—feedingwithguide—Rollforming—punching&Cutting—Products collecting
Machine List:
Samples:
Machine Pictures:
Application:
C U stud track profile is popular in South America, especially Peru, Chile, raw material could be Galvanized steel, high-tensile steel, the material can do 0.4mm to 1.2mm, width from 40mm to 200mm, change the width automatically by motor and PLC
We also have fully automatic light steel frame machine with vertex software, can do the house frame, like roof, wall, floor, windows, truss,etc.
Also we can design the machine as your requirement or drawings.
