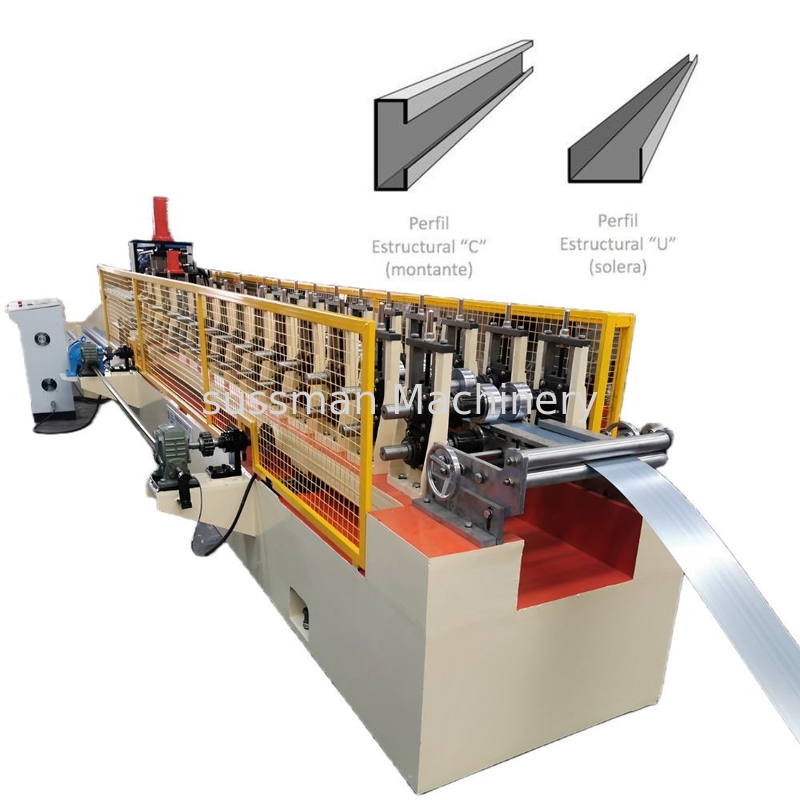

Chile Market 40mm-200mm Metalcon C U Stud Track Drywall Roll Forming Machine
Metalcon is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places. Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.
In Drywall system and drywall partition system, we could provide roll forming machine as following:
Technical Parameter
Width adjustable by PLC automatically
| Items | Specifications | |
| Material of coil | Material Thickness | 0.85-1.6mm G550 Galvanized coils |
| Punching device | Hydraulic punching device | 1 set |
| Forming system | Rolling Speed | 10 m/min with driven chain |
| Roller Stations | About 15 stations forming | |
| Roller Material | Gcr15 Steel with quenching | |
| Shaft Material |
45# Steel Diameter 75mm shaft
|
|
| Main Motor Power | 7.5 kw | |
|
Cutting |
Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Cutting blade | 2 sets of cutting blade | |
| Electrical control system | Electric Source | 380V, 50HZ,3 phase, according to buyer’s request |
| Control System | PLC with touch screen | |
| Weight | About 5 tons | |
| Way Of Drive | 1 inch single chain | |
| Size of machine | Length 7500mm* Width 800mm* Height 1000m |
Machine List
| 3 tons hydraulic de-coiler | 1 set |
| Main roll forming machine with logo | 1 set |
| PLC Control box | 1 unit |
| Hydraulic cutting device | 1 unit |
| Hydraulic punching device | 1 unit |
| 6 meters Simple auto stacker | 1 unit |
Profile Drawing
Technological process:
Decoiler—feeding with guide—Hydraulic punching—Roll forming—Cutting—Products collecting
Machine Pictures
Application:
