| Place of Origin | Jiangsu,China |
| Brand Name | Sussman |
| Certification | CE ISO 9001 |
| Model Number | SM-RB |

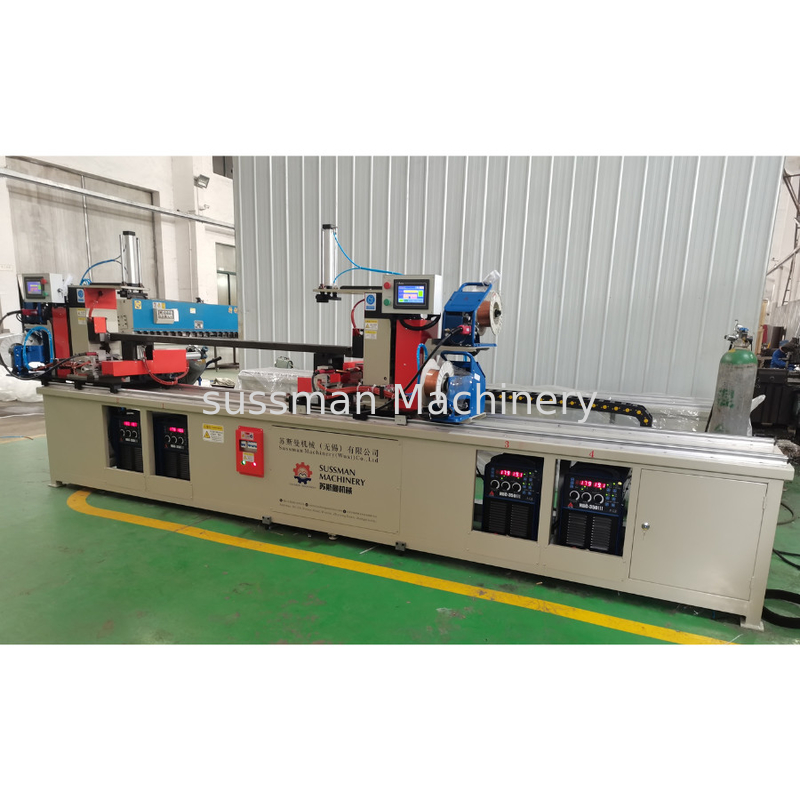

Heavy Duty Racking Upright System Auto Box Beam Welding Machine, Sqaure Tube Beam Welding Equipment
Beam Welding Machine Main Specifications
| S.N | Item | Description |
| 1 | Welding edge | 4 sides beam welding machine |
| 2 | Length of the beam | 800-4000mm |
| 3 | Material thickness | 0.8-4.0 mm |
| 4 | Diameter of the welding wire | 0.8-1.0 mm |
| 5 | Model of the welding unit | Famous chinese brand |
| 6 | Number of welding unit | 4 sets welding guns |
| 7 | Number of air cylinder | 18 sets |
| 8 | Main motor | 2kwX2 stepping motor |
| 9 | Voltage | 380V, 50HZ, 3 phase |
| 10 | Clamping | By pneumatic |
| 11 | Turn over system | By cylinder, gear and rack |
| 12 | Horizontal push to adjust the length | By liner guide way and fix by manual |
| 12 | Size of the machine | About 5.2mX1.0mX1.8m |
| 14 | Machine weight | About 1200kgs |
| 15 | Gas | CO2 or 80%Ar+20%CO2 |
| 16 | Length Tolerance | 0mm to -4mm(Maximum single side -2mm) |
| 17 | Welding speed | About 80-120pcs/hour |
Rack Beam Profile reference
This machine is used for supermarket shelves, warehouse racking upright beam welding, 4 guns and 8 sides with
turnover function. High speed and automatic operation.PLC control, Mitsubishi, Japan.
Beam welding machine application
This model is suitable for welding the beams which requirements to welding four lines of each end .
The four welders operate simultaneously to complete the work at once,it is high efficiency.We adopte the high-quality components, the machine has a very long life.
