| Place of Origin | Jiangsu,China |
| Brand Name | Sussman |
| Certification | CE ISO 9001 |
| Model Number | SM-RB |
Automatic 4 Meters Long Racking Lock Beam MIG Welding Machine With 4 Welders
Auto Rack Beam Welding Machine Main Specifications
| 1 | Welding edge | 6 sides of beam |
| 2 | Length of the beam | 1200-4000mm |
| 3 | Material thickness | 1.5-2.5mm |
| 4 | Diameter of the welding wire | 0.8-1.0 mm |
| 5 | Model of the welding unit | Chinese famous brand |
| 6 | Number of welding unit | 4 sets welding guns |
| 7 | Number of air cylinder | 18 sets |
| 8 | Main motor | 1kw stepping motor |
| 9 | Voltage | 380V, 50HZ, 3 phase |
| 10 | Clamping | By pneumatic |
| 11 | Turn over system | By cylinder, gear and rack |
| 12 | Horizontal push to adjust the length | By liner guide way and fix by manual |
| 12 | Size of the machine | About 5.2mX1.0mX1.9m |
| 14 | Machine weight | About 1200kgs |
| 15 | Gas | CO2 or 80%Ar+20%CO2 |
| 16 | Length Tolerance | 0mm to -4mm(Maximum single side -2mm) |
| 17 | Welding speed | About 100-120 piece in one hour |
Rack Beam Profile reference
Auto beam welding machine is customized for storage rack industry and supermarket shelves
The 4 weld guns run automatically controlled by PLC, which can weld 2 sides one time and rotate to weld another 2 sides.

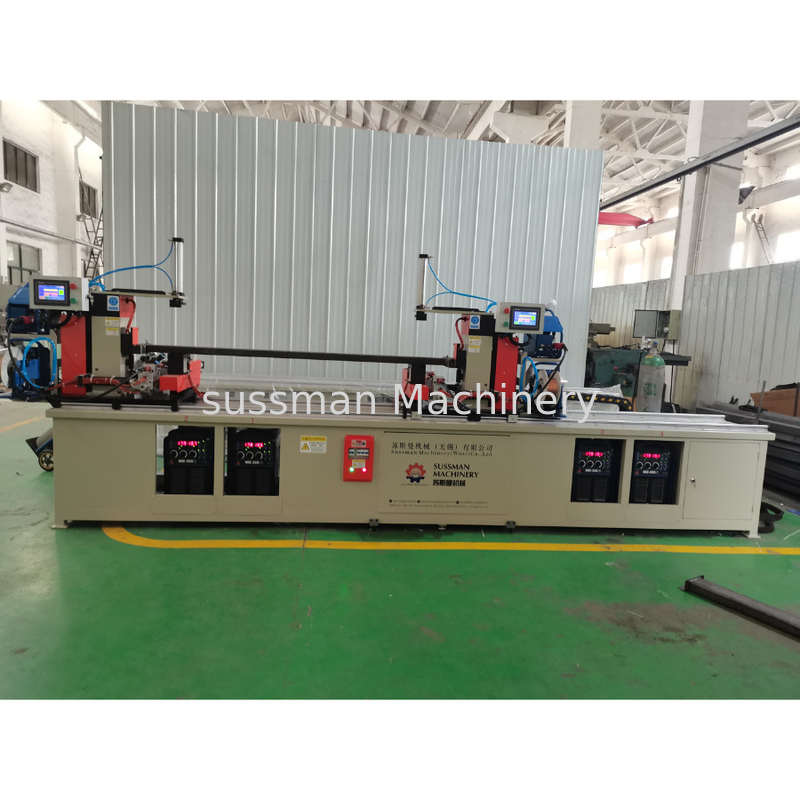

Beam welding machine Photo
MIG Beam Welder Machine is to weld beams faster and more accurate, which not only saves labors to improve production capacity, but also saves consumables and materials, and ultimately greatly improves enterprise profits.
