Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS.CE.ISO |
| Model Number | SM-WA |

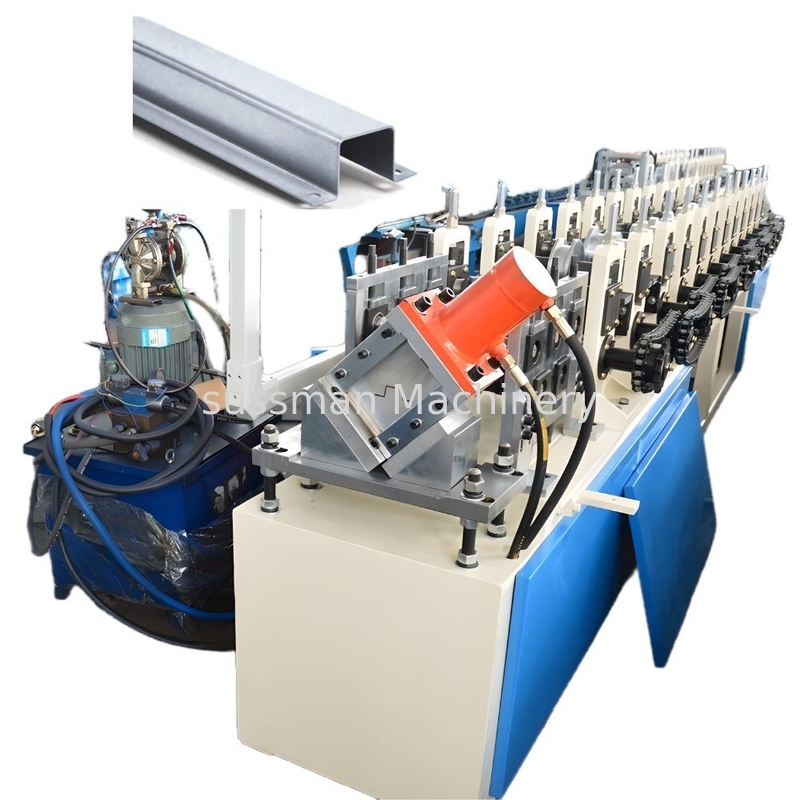

Galvanized Steel Top Hat Upright Rack Cross Support Bar Roll Forming Machine Warehouse System
Top hat style pallet supports are called “Top Hat” because they are shaped like the brim of Lincolns top hat! The advantage to these crossbars is that they sit down flush with the top of the beam! Top hat pallet supports are ideal for supporting the bottom of pallets stored in a selective pallet rack system. Pallet rack supports are the most economical method for supporting full pallet loads stored in industrial selective pallet rack shelving.
Machine Technical Parameter
|
|
Items |
Specifications |
|
Material of coil |
Material Thickness |
0.5-1.0 mm |
|
De-coiler |
Weight |
3 ton manual |
|
Forming system |
Rolling Speed |
up to 15m/min |
|
Roller Stations |
About 13 stations forming |
|
|
Roller Material |
Gcr15 Steel with quenching |
|
|
Shaft Material |
45# Steel |
|
|
Maim Motor Power |
7.5 kw |
|
|
Hydraulic cutting Power |
4 kw |
|
|
Cutting |
Material Of Cutting |
CR12 with quench treatment |
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
|
Cutting blade |
1 set of cutting blade |
|
|
Electrical control system |
Electric Source |
380V, 50HZ |
|
Control System |
PLC with touch screen Japanese Panasonic and Yaskawa Brand |
|
|
|
Weight |
About 3.5 tons |
|
|
Way Of Drive |
1 inch single chain |
|
|
Size of machine |
Length 3100mm* Width 500mm* Height 700m |
Main Components
| Main Components | |
| 3 ton passive de-coiler | 1 set |
| Feeding with guide | 1 set |
| Main roll forming machine | 1 set |
| PLC control system | 1 unit |
| Hydraulic station | 1 unit |
| Stop cutting device | 1 unit |
| Safety cover | 1 unit |
| Out table | 2 units |
| Spare parts | 1 package |
Working Flow of Roll Forming Machine
feeding with guide—Roll forming——Cutting—Products collecting
Photo Gallery
Application:
Advantages of top hat pallet supports:
• Gives support to bottom of pallets while stored in pallet rack
• Reduce load times by giving lift truck driver confidence when loading pallets on high beam levels
• This increased confidence decreases loading times of forklift drivers
• Help prevent pallets that are not loaded 100% centered on beams from falling to the floor
Competitive Advantage
1. save space
2. easy installation
3. perfect service
4. excellent quality
5. Operate easily
