Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |

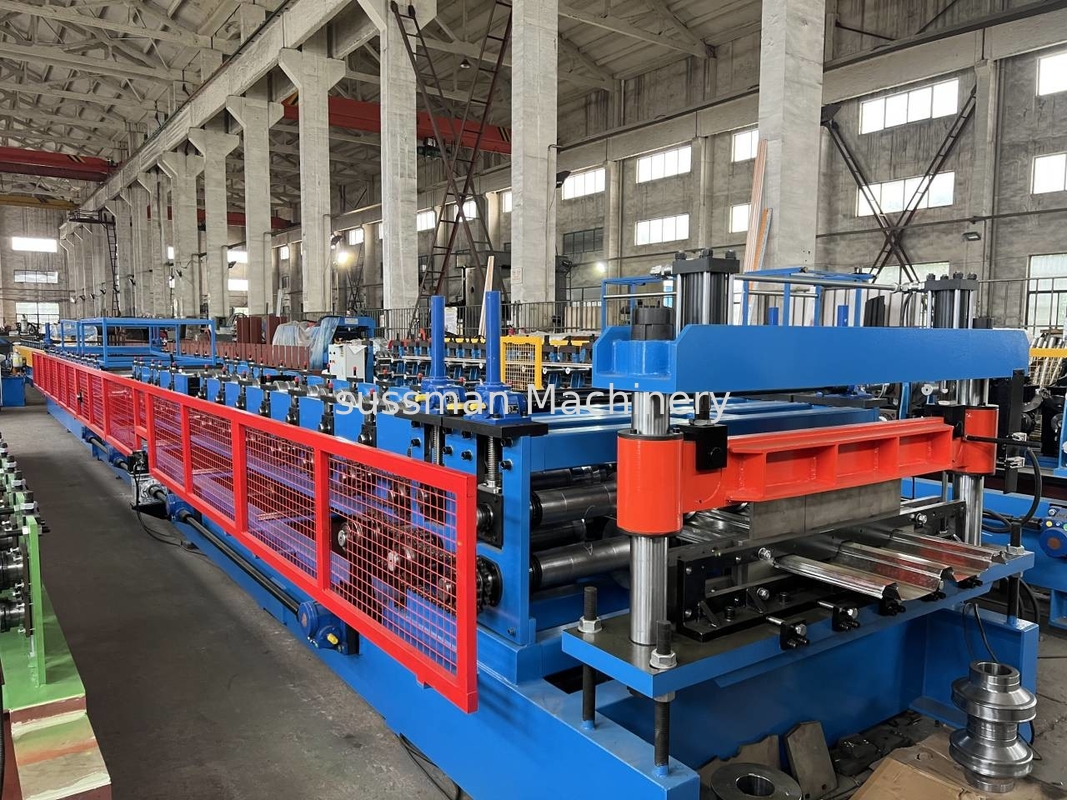

0.3-0.8mm Galvanized Steel Width Adjustable Boltless Metal Roof Machine
1. Technical Parameter
|
Size |
8000*1400*1500mm |
|
Weight |
6500KGS |
|
Voltage |
220V/60HZ/3PH |
|
Motor Power |
7.5KW |
|
Hydraulic Power |
4KW |
|
Forming Steps |
24-28 |
|
Working Speed |
8-12m/min |
|
Height of Roofing |
as request |
|
Effective Width |
as request |
|
Material Width |
1000mm |
|
Thickness |
0.3-0.8mm |
|
Tolerance |
±2mm |
|
Roller material |
High grade 45# forged steel, Plated hard chrome and polished all the rollers |
|
Material of shaft |
High grade 45# forged steel |
|
After-sales Service Provided |
Engineers available to service machinery overseas |
2. Machine List
|
5 tons passive de-coiler |
1 set |
|
Feeding with guiding |
1 set |
|
Main roll forming machine |
1 set |
|
Cutting machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
Passive Out table |
2 units |
|
Safety cover |
1 unit |
3. Profile Drawing
4. Application
This machine is used to form the pre-painted sheet/GI material to be the standing seam for various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.
5. Packaging & Shipping
1. Before loading to the container, we will check the machine first
2. To make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
3. We will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container.
Advantage:
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Machine maintenance
Daily maintenance with meticulous care plays an important part in extension the equipments’ operation time and the quality of rolling plank. Therefore, please do the following things in your daily.
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
