| Place of Origin | China |
| Brand Name | SUSSMAN |
| Certification | CE.SGS.ISO |
| Model Number | SS-RS |
1.0mm-2.0mm Thickness Galvanized Steel Plain Door Guide Box Rail Roll Forming Machine
Guide Rail/Track as the essential component of roller door/shutter solution, not only to guide the door, it must provide wind resistance and security protection.
| Items | Specifications | |
| Material of coil | Material Thickness | 2.5mm, 1.85mm galvanized or black steel |
| Un Coiler | 3 tons manual | |
| Forming system | Rolling Speed | 10 m/min |
| Roller Stations | 16 stations | |
| Roller Material | 45# Steel with quenching 50mm shaft | |
| Main Motor Power | 11 kw | |
| Hydraulic cutting Power | 4 kw | |
Cutting | Material Of Cutting | CR12mov with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source | 440V, 60HZ,3 phase |
| Control System | PLC (Delta ) as list in the note | |
| Weight | About 4.5 tons | |
| Way Of Drive | Gear box driven | |
| Size of machine | Length 5800mm* Width 600mm* Height 800mm |
Machine List:
3 ton passive decoiler: 1 set
Main roll forming machine: 1 set
PLC Control box with 3 emergency stop: 1 unit
Hydraulic cutting: 1 unit
Hydraulic station: 1 unit
Safety cover: 1 unit
Profile Drawing:
Working Flow:
Uncoiling—feedingwithguide—Rollforming——hydraulicCutting—Products collecting

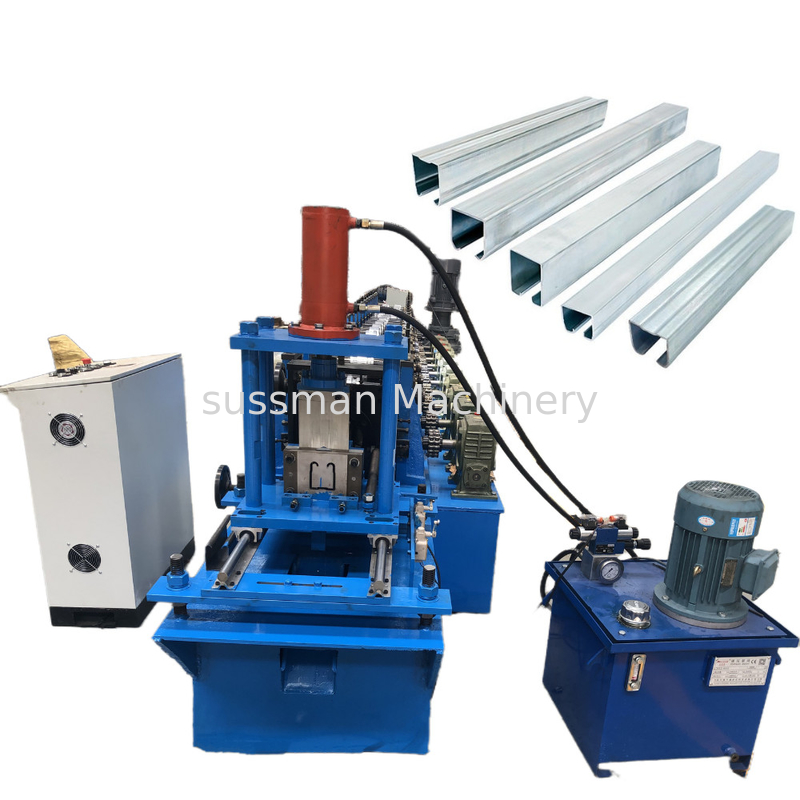

Machine Shows:
Profile Drawing
1) Easy in installation and maintenance.
2) Hardened structural steel and components provide long life and safe operational stability.
3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.
4) Running in an automation, high durability and stability.
5) Compact design, meet custom demands.
