1.0-2.0mm Gi Steel C U Roll Forming Machine Steel Reinforcement Profiles Machine For Upvc Windows
  • 1.0-2.0mm Gi Steel C U Roll Forming Machine Steel Reinforcement Profiles Machine For Upvc Windows
  • 1.0-2.0mm Gi Steel C U Roll Forming Machine Steel Reinforcement Profiles Machine For Upvc Windows
  • 1.0-2.0mm Gi Steel C U Roll Forming Machine Steel Reinforcement Profiles Machine For Upvc Windows
  • 1.0-2.0mm Gi Steel C U Roll Forming Machine Steel Reinforcement Profiles Machine For Upvc Windows
1.0-2.0mm Gi Steel C U Roll Forming Machine Steel Reinforcement Profiles Machine For Upvc Windows

1.0-2.0mm Gi Steel C U Roll Forming Machine Steel Reinforcement Profiles Machine For Upvc Windows

Place of Origin China
Brand Name SUSSMAN
Certification CE.SGS.ISO
Model Number SS-RS
Product Details
Type:
Reinforcement Profiles Roll Forming Machine
Material:
1.0-2.0mm, Galvanized Steel
Forming Steps:
12-14 Stations
Motor Power:
11KW
Profile:
C Profile, U Profile, Tube
Application:
Door Window Reinforcement
High Light:

1mm steel roll forming machine

,

reinforcement profiles steel roll forming machine

,

upvc windows steel roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD65000-85000 Per Set
Packaging Details
Standard package with film, plastic and steel wire. (or customized)
Delivery Time
Shipped in 90 days after payment
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description



1.0mm-2.0mm Thickness Galvanized Steel Windowns Doors Reinforcement Profiles Roll Forming Machine




Items
Specifications
Material of coil
Material Thickness
1.0-2.0mm Galvanized steel
Forming system
Rolling Speed
0-30m/min
Roller Stations
About 11 stations
Roller Material
Gcr15 Steel with quenching
60mm shaft
Shaft
60mm
Maim Motor Power
11kw
Hydraulic cutting Power
7.5kw
Electrical parts
Schneider
Cutting
Material Of Cutting
CR12mov with quench treatment
system
Hardness
HRC58-62

Tolerance
+-1.5mm
Electrical control system
Electric Source
220V, 60HZ,3 phase
Control System
PLC Delta

Weight
About 4 tons

Way Of Drive
2 inches chain

Size of machine
Length 8000mm* Width 800mm* Height 1000m
Technological process:
Uncoiling—feedingwithguide—Rollforming——non stop cutting—products collecting

Machine List:
2 tonne double heads de-coiler
1 set
Main roll forming machine
1 set
PLC Control box
1 set
Hydraulic station
1 unit
Servo following cutting device
1 unit
3 meters auto stacker
1 unit



Application:



Reinforcing profile for PVC windows provides stiffness and stability of window frames and door assemblies.

A steel load-bearing member installed in inner chamber of plastic extrusions increases a performance property of PVC-windows, compensates temperature changes in geometry of plastic or metal, prevents deformation.



If you are making a normal and standard sized upvc window or door then it is recommended that you use GI Reinforcement with a thickness of 1.2 mm to 1.5 mm

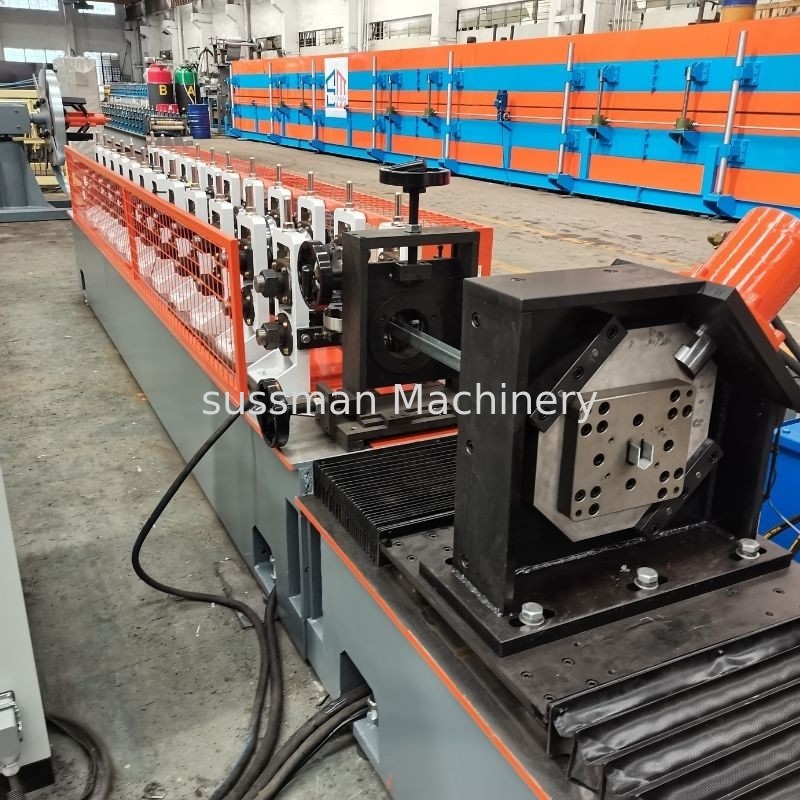

1.0-2.0mm Gi Steel C U Roll Forming Machine Steel Reinforcement Profiles Machine For Upvc Windows 0

1.0-2.0mm Gi Steel C U Roll Forming Machine Steel Reinforcement Profiles Machine For Upvc Windows 1





Main Photo

1.0-2.0mm Gi Steel C U Roll Forming Machine Steel Reinforcement Profiles Machine For Upvc Windows 2
