Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
Stud & Track Steel Wall Framing C U Drywall Roll Forming Machine For Gypsum Board Ceiling
The light steel stud track drywall roll forming machine C and U with varies sizes.
Light steel keel used good quality hot galvanized strip as raw materials, It is widely used for paperfaced gypsum board, decorative gypsum board to finish the non-bearing walls and roof of the building decoration.
1. Technical Parameter
| Items | Specifications | |
| Material of coil | Material Thickness | 0.4-1.2mm galvanized coils |
| De-coiler | Weight | 3 ton hydraulic de-coiler |
| Punching | Number | 5 sets of punching moulds one for the round holes, another for the dimple screws |
| Servo motor |
2.9kw |
|
| Forming system | Rolling Speed | 5-6 m/min |
| Roller Stations | About 16 stations forming | |
| Roller Material | Gcr15 Steel with quenching HRC 55-60 | |
| Shaft Material |
45# Steel Diameter 75mm shaft
|
|
| Maim Motor Power | 7.5kw | |
| Hydraulic cutting Power | 7.5 kw | |
|
Cutting system |
Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Cutting blade | 2 sets of cutting blade | |
| Electrical control system | Electric Source | 415V, 50HZ,3 phase |
| Control System | PLC with touch screen Delta and Delta Brand | |
| Weight | About 3 tons | |
| Way Of Drive | 1 inch single chain | |
| Size of machine | Length 7500mm* Width 800mm* Height 1000m |
2. Machine Components
| 3T electric decoiler | 1 set |
| Feeding with guide | |
| Hydraulic punching device | 1 set |
| Roll forming machine | 1 set |
| Hydraulic station | 1 set |
| Control box system | 1 unit |
| Out tables | 1 unit |
| Safety cover | 1 unit |
| Tool box | 1 package |
3. C U profiles we can make
C U stud track profile is popular in South America, especially Peru, Chile, raw material could be Galvanized steel, high-tensile steel, the material can do 0.4mm to 1.2mm, width from 40mm to 200mm, change the width automatically by motor and PLC
The round holes on the bottom, and the screw dimple on the sides
Stud and track is made in one machine size by spacers and toolings, holes 25mm

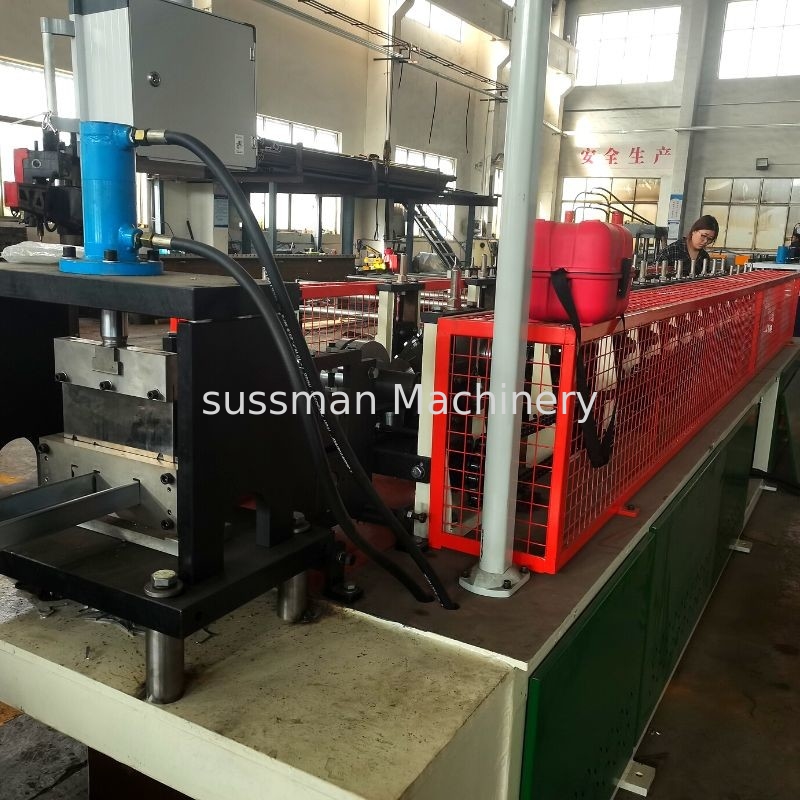

4. Machine photo
