Mexico Popular Calibre 22 To 32 Trapezoidal Sheet R-72 R-101 Profiles Roofing Roll Forming Machine
1. Zinc roofing machine technical parameter
|
Coil Material
|
Material thickness
|
0.3-0.8mm PPGI Color steel, galvanized steel
|
|
Material width
|
1220mm
|
|
ROLL MACHINE
|
Frame Structure
|
350H frame
|
|
Roller Station
|
About 24 roller stations
|
|
Roller Shaft
|
76mm 45# Steel Solid,Precision
|
|
Shaft Material
|
45# Steel Solid,Precision
|
|
Roller Info.
|
45# steel harden chromed plated
|
|
Transmission
|
Chain 1 inch
|
|
Motor Power
|
7.5KW
|
|
Output Speed
|
About 0-12m/min
|
|
CUTTING
|
Cutting Type
|
Hydraulic Automatic
|
|
Cutting Blade
|
Cr12Mov,hardness 60-62℃
|
|
HYDRAULIC
SYSTEM
|
Installation
|
inside,easy for operation
|
|
Pump Motor
|
4KW
|
|
CONTROL
SYSTEM
|
Electrical Control
|
PLC with touch screen
|
|
Length Control
|
Encoder Omron
|
|
Length Tolerance
|
±1.5mm
|
2. Roofing Machine List
|
5T passive de-coiler
|
1 set
|
|
Plastic film
|
1 set
|
|
Manual pre-cutting device
|
1 set
|
|
Main roll forming machine
|
1 set
|
|
Hydraulic cutting machine
|
1 set
|
|
PLC Control box
|
1 unit
|
|
Hydraulic station
|
1 unit
|
|
Passive Out table
|
2 units
|
|
Safety cover
|
1 unit
|
3. Profile Drawing of roofing machine
It is a ribbed profile with a trapezoidal configuration manufactured in the plant by means of a stationary rolling machine from a roll of Ternium Zintro, Ternium Zintro Alum or Ternium Pintro steel, designed to be used as an exposed fixing cover.
The R72 corrugated sheet is a steel laminate that has a trapezoidal profile that adapts to an infinity of constructions and can work both on the roof and on walls and fences.
The R101 sheet is a rectangular ribbed profile that offers great structural resistance; Due to its trapezoidal profile, it is used as an exposed fixing cover and facades and skirting. Within our range of corrugated steel sheets, R101 is perhaps the best-selling, since it can be adapted to an endless number of buildings, among the applications in which the R101 corrugated sheet can be used are: Commercial and industrial warehouses,warehouses,Malls,Sports facilities,gyms,barns,factories and more.
5. Applications
Walls, roofs, and skirts of industrial buildings, warehouses and constructions in general.
-
Large Industrial & Commercial Roofs: This is the main use for the R101 profile. Its wider effective coverage (approximately 101 cm or 1.01 m) and higher structural strength make it well-suited for large roofs of industrial factories, warehouses, and commercial structures
-
Walls and Enclosures: It is also used for wall cladding on factories and warehouses.
-
Other Structures: The R101 sheet can be used in applications like residential roofing (for a modern metal look), shopping centers, and possibly some agricultural buildings

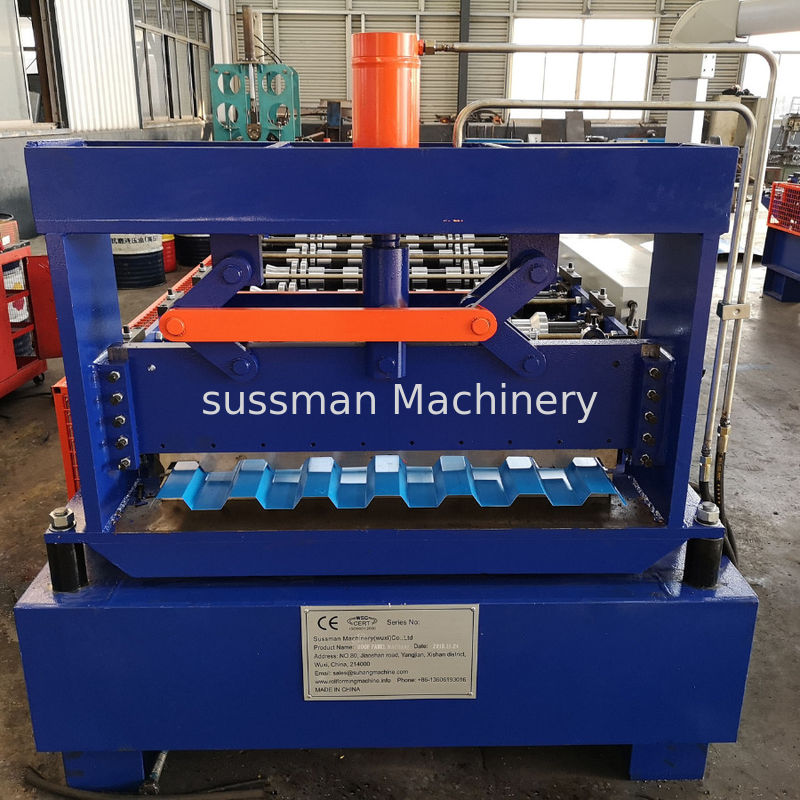

5. Roofing Machine Photo
