Gauges 22 To 32 Trapezoidal Configuration R-72R-101 Profiles Roof Panel Roll Forming Machine
1. Roofing machine technical parameter
|
Coil Material
|
Material
|
PPGI Color steel, galvanized steel
|
|
Material thickness
|
0.3-0.8mm |
|
ROLL MACHINE
|
Frame Structure
|
350H frame
|
|
Roller Station
|
About 20-22 roller stations
|
|
Roller Shaft
|
76mm 45# Steel Solid,Precision
|
|
Shaft Material
|
45# Steel Solid,Precision
|
|
Roller Info.
|
45# steel harden chromed plated
|
|
Transmission
|
Chain 1 inch
|
|
Motor Power
|
7.5KW
|
|
Output Speed
|
About 12-15m/min
|
|
CUTTING
|
Cutting Type
|
Hydraulic Automatic
|
|
Cutting Blade
|
Cr12Mov,hardness 60-62℃
|
|
HYDRAULIC
SYSTEM
|
Installation
|
inside,easy for operation
|
|
Pump Motor
|
4KW
|
|
COMPUTER
SYSTEM
|
Electrical Control
|
PLC Siemens
|
|
Length Control
|
Encoder Omron
|
|
Length Tolerance
|
±1.5mm
|
|
Touch Screen
|
Siemens
|
2. Roofing Machine List
|
5 Tons passive de-coiler
|
1 set
|
|
Plastic film device
|
1 set
|
|
Manual pre-cutting oe electric
|
1 set
|
|
Main roll forming machine
|
1 set
|
|
Hydraulic cutting machine
|
1 set
|
|
PLC Control box
|
1 unit
|
|
Hydraulic station
|
1 unit
|
|
Passive Out table
|
2 units
|
|
Safety cover
|
1 unit
|
3. Profile Drawing of roofing machine
It is a ribbed profile with a trapezoidal configuration manufactured in the plant by means of a stationary rolling machine from a roll of Ternium Zintro, Ternium Zintro Alum or Ternium Pintro steel, designed to be used as an exposed fixing cover.
The R72 corrugated sheet is a steel laminate that has a trapezoidal profile that adapts to an infinity of constructions and can work both on the roof and on walls and fences.
The R101 sheet is a rectangular ribbed profile that offers great structural resistance; Due to its trapezoidal profile, it is used as an exposed fixing cover and facades and skirting. Within our range of corrugated steel sheets, R101 is perhaps the best-selling, since it can be adapted to an endless number of buildings, among the applications in which the R101 corrugated sheet can be used are: Commercial and industrial warehouses,warehouses,Malls,Sports facilities,gyms,barns,factories and more.
5. Applications
Walls, roofs, and skirts of industrial buildings, warehouses and constructions in general.
Muros.
covers.
Coattails of industrial buildings.
Bodegas.
General construction.

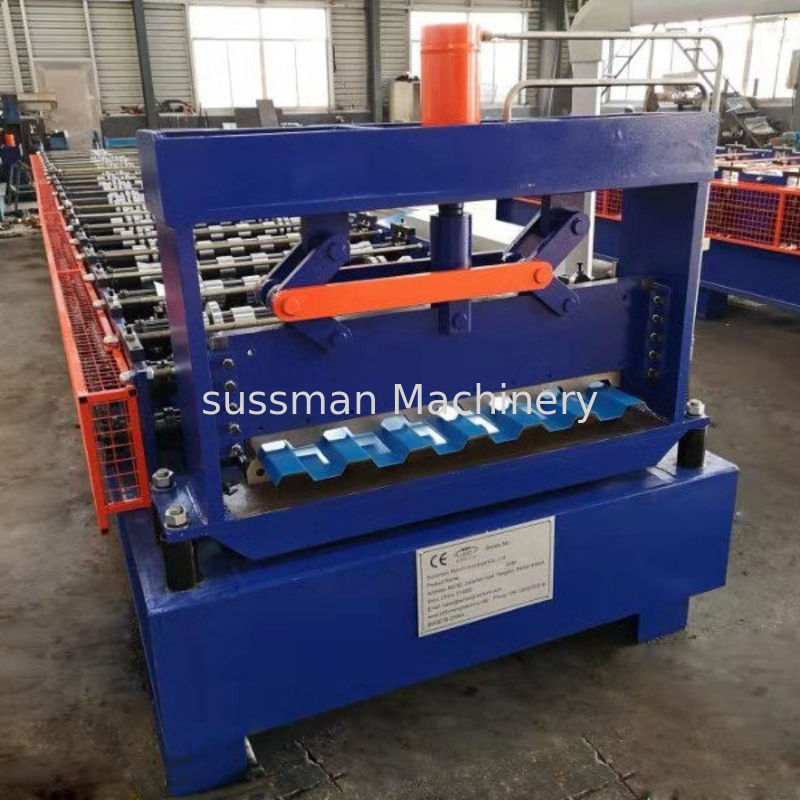

5. Roofing Machine Photo
