Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |

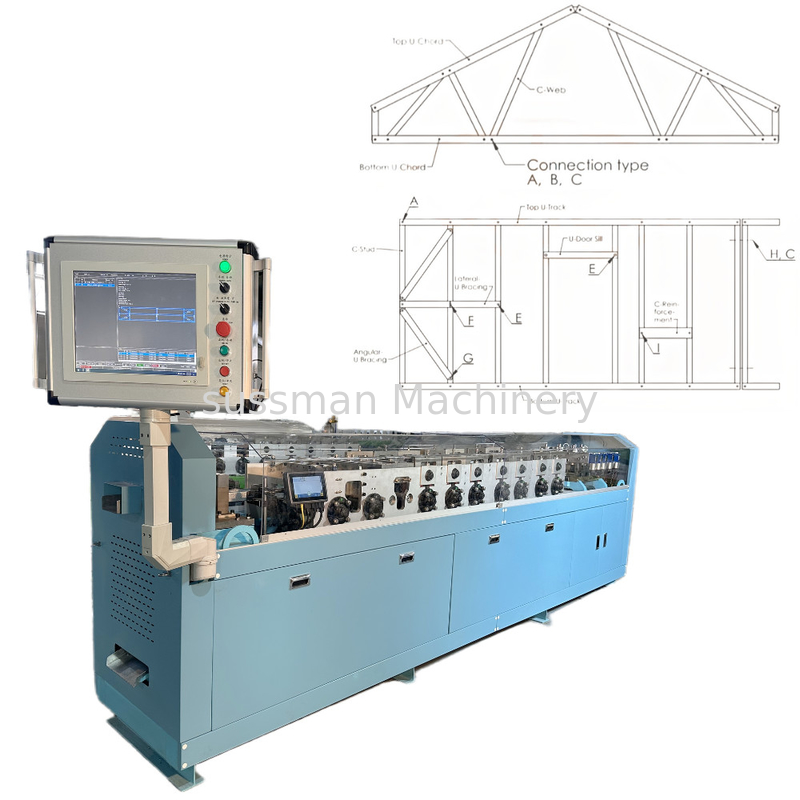

Ready to Ship C89 Light Gauge Framing Machine LGS LGSF Making Machine with Vertax BD Software
The Light Steel Framing Machine is the automatic production line. Width 75mm, 89mm, 140mm are the common sizes. The machine includes decoiler, hydraulic punching, hydraulic cutting, 6 meters passive decoiler, industrial computer and so on.
Main Specifications
| Item | Description |
| Automatic Decoiler | |
| Loading Weight | 2000kgs |
| Coil Inner Diameter | φ430~520mm |
| Coil Outer Diameter | φ1300mm |
| Strip width | 100~450mm |
| Strip thickness | 0.7~1.2mm |
| Profile description | |
| C Profile size | 89*41*13mm |
| Roll Forming Machine | |
| Dimension | 5000*1000*1800mm |
| Weight | 3500kgs |
| Roller grade | Material: SKD-11 |
| Roller Processing Technique | CNC maching,heat treatment HRC58-60 |
| Shaft grade | 40Cr Steel |
| Shaft processing technique | CNC maching, quenching and tempering HRC28-32 |
| Punching Device | dimpling with screw holes,service hole,web notch,lip notch, truss end chamfer, swage, crimp |
| Control System | |
| Control Device | One Lenovo laptop, a control box inside of based frames of the machine |
| Design Software | Vertex BD from AU |
| Leaser Printing Device | USA Matthews Leaser Printing Device for Painting spray logo and installation indicating number |
| Remote-control Device | Wireless remote-controller controls machine to go forward or back or stop |
| Main brand | PLC(self-developed),Relay(Schneider),Proximity switch(Schneider),Encode(Omron) |
| Motor and hydraulic System | |
| Servo motor | 5.5kw with precious gear reducer |
| Hydraulic station | 7.5kw , 200L tank |
| Run-out Table | |
| Length | 3M with side pnematic support |
| General introduction | |
| 1. Windows system touch panel. Quick importing NC instructions Via network or USB interface. | |
| 2.Visual work process monitoring | |
| 3.Vertex BD Software | |
| 4.German Bosch Rexroth hydraulic system. Quick loading and unloading mould design | |
| 5.High quality die steel. Vacuum hardening treatment. CNC Machine Center Finishing | |
| 6.Built-in maintenance free ink jet printer | |
| 7.Perfect forming. Accurate sizing | |
Equipment description
1: Configuration of the machine
Uncoiler 1 set
Roll forming roller: 12 groups
PLC control system 1 set
Hydraulic cutting system: 1 set
Collection table
2: Working Process Flow of the omega profile forming machine
Uncoiling-Coil feeding-Guiding-Roll Forming-Punching (if needed) - Cutting-Collection table
3: Technical Parameters:
A: Power supply:
380V, 3 phases, 50 Hz (can be adjusted according to actual power supply conditions in different countries)
Main motor power: 7.5KW
Pump power: 5.5kw
B:Uncoiler:
Inner diameter: 460-520mm
Outer diameter: 1300mm
loading weight: 2T
C:Forming part:
Feeding thickness: 0.6-1.2mm
Feeding width: 50-500mm
Forming speed: 8-12m/min
Cutting Deviation: 10m±2mm
No. of Roller station: 12 groups
Roller material: GCr15
Material of shaft: Cr40
Diameter of shaft: 42mm
D:Hydraulic System:
Hydraulic pressure: 10-12 Mpa
Cutter material: SKD11
E:Control system:
Full-automatic NC-PLC control system
Control channel: Colored touch screen
Our machine photo
Application:
Softwares:
