1.0-2.0mm Thickness Gi Steel Metal V Shape Roll Forming Machine U Channel

Place of Origin	China
Brand Name	SUSSMAN
Certification	CE.SGS.ISO
Model Number	SS-RS

Product Details

Type:

U Profiles Roll Forming Machine

Material:

0.7-1.2mm Galvanized Steel

Forming Steps:

9 Stations

Motor Power:

5.5KW

Application:

Woven Wire Mesh

Weight:

2.5 Tons

Highlight:

2.0mm Thickness Roll Forming Machine

U Channel Roll Forming Machine

Gi Steel Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

USD65000-85000 Per Set

Packaging Details

Standard package with film, plastic and steel wire. (or customized)

Delivery Time

Shipped in 90 days after payment

Payment Terms

L/C, T/T

Supply Ability

10 sets per month

Product Description

1.0-2.0mm Thickness Gi Steel Metal V Shape Roll Forming Machine U Channel

	Items	Specifications
Material of coil	Material Thickness	0.7-1.2mm Galvanized steel
Forming system	Rolling Speed	8-12m/min
	Roller Stations	About 9 stations
	Roller Material	Gcr15 Steel with quenching
	Shaft	60mm
	Maim Motor Power	5.5kw
	Hydraulic cutting Power	4kw
	Electrical parts	Schneider
Cutting	Material Of Cutting	CR12mov with quench treatment
system	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	415V, 50HZ,3 phase
Electrical control system	Control System	PLC Delta
	Weight	About 2.5 tons
	Way Of Drive	2 inches chain
	Size of machine	Length 4000mm* Width 800mm* Height 1000m

Technological process:
Uncoiling—feedingwithguide—Rollforming——stop cutting—products collecting

Machine List:

3 Tons de-coiler	1 set
Roll forming machine	1 set
PLC Control box	1 set
Hydraulic station	1 unit
Stop cutting device	1 unit
3 meters auto stacker	1 unit

Application:

Metal u channel trim can be used individually, or in nested horizontal and vertical sets to provide endless options for covering the edges of woven wire fabric panels and perforated metal sheeting.

1.0-2.0mm Thickness Gi Steel Metal V Shape Roll Forming Machine U Channel 0

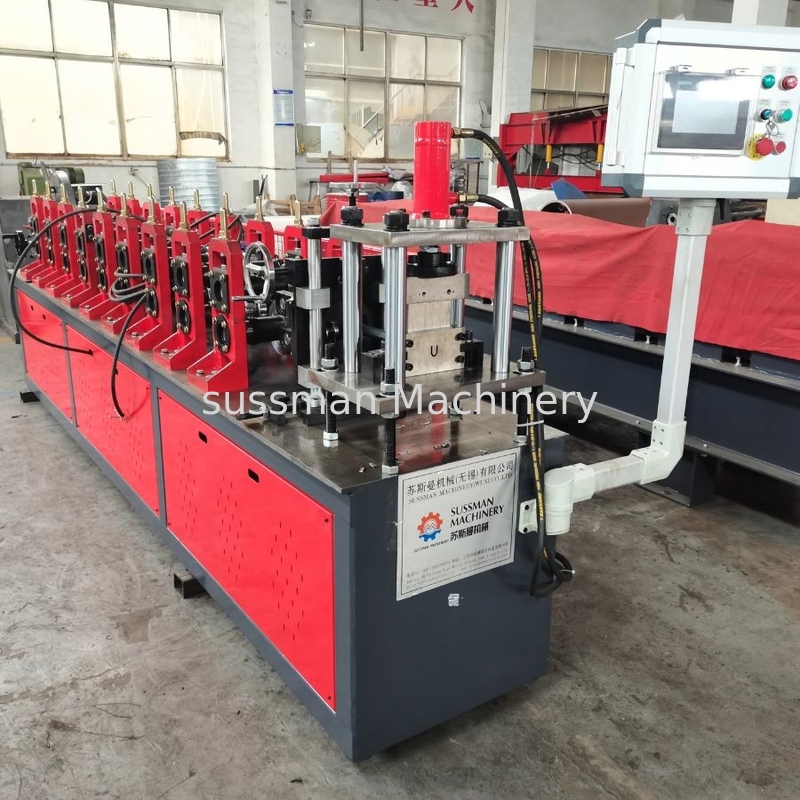

Machine photo

High precision product,PLC control.

Full auto operation.

1. Customized Machines
2. Professional Designed
3. Quality Assurance Team

4. Technical Support
5. Excellent Quality Production Guaranteed

1.0-2.0mm Thickness Gi Steel Metal V Shape Roll Forming Machine U Channel 1
