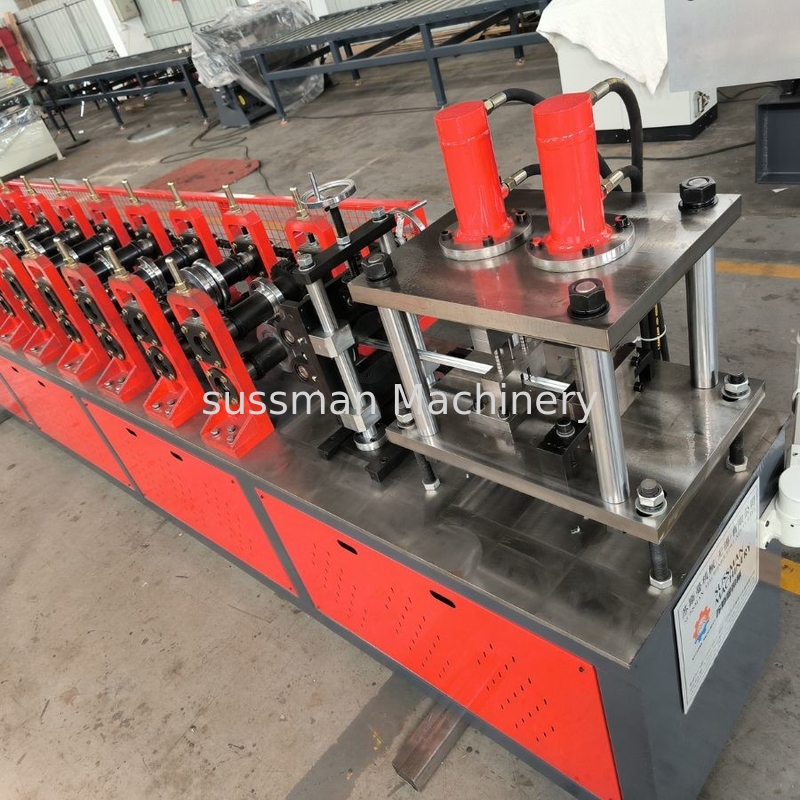

Customized Steel Profile U Shaped Drywall Roll Forming Machine For The Ceilling And Wall

Place of Origin	Wuxi, China
Brand Name	Sussman
Certification	CE, SGS, ISO
Model Number	RF-ST

Product Details

Type:

U Shaped Profile Roll Forming Machine

Stations:

10 Rollers

Motor Power:

5.5Kw

Thickness:

0.8-1.2mm Galvanized Steel Coil

Transmission:

Chain

Width:

40mm

Highlight:

U Shaped Drywall Roll Forming Machine

Ceilling And Wall Roll Forming Machine

Customized Steel Profile Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Film and steel

Delivery Time

60 days after deposit

Supply Ability

10 sets/month

Product Description

Customized Steel Profile U Shaped Drywall Roll Forming Machine For The Ceilling And Wall

1. Technical Parameter

NO.	Item	Specification
Material	Raw material	Galvanized steel
Material	Thickness	0.8 -1.2mm
Machine	Roller station	10
	Shaft diameter	60 mm
	Solid shaft material	High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment
	Roller material hardness	Gcr15 50-55HRC
	Machine size	About 50.81.0m
	Machine weight	About 3 tons
	Machine color	As customer need
	Working speed	8-12m/min
Cutter	Hardness	58-62 HRC
	Cutting tolerance	± 1mm
	Material	Cr12
	Operate	Hydraulic stop cutting
Power	Driving way	Chain
	Main motor	5.5 KW
	Pump motor for cutter	4 KW
	Voltage	415V/50HZ, 3P or Customized as customer' request
Control system	PLC brand	Delta made in Taiwan
	Screen	Touchable screen
	Language	Chinese and English or add customer need language
Decoiler	Operation	Manual
	Weight capacity	3 Tons
	Price	Free as gift
Receive table	Operation	Manual
Receive table	Length	4 m

2. Machine Components

3T passive decoiler	1 set
Hydraulic Cutting device	1 set
Main roll forming machine	1 set
Control box system	1 unit
Out tables	2 units
Tool box	1 package

3. Features of the production line

1) Directly input the data on the touchable screen, it is easy operation.

2) Automatically continually manufactures high quality product with PLC.

3) Saving time and cost owing to high speed running with hydraulic system.

4) Professional designing for manufactures roofing & walling

4. Steel profile

Customized Steel Profile U Shaped Drywall Roll Forming Machine For The Ceilling And Wall 0
