0.7-1.2mm Galvanized Steel Cold Rolled U Channel U Track Steel Profile Roll Forming Machine

Place of Origin	Wuxi Jiangsu China
Brand Name	Sussman
Certification	CE
Model Number	SM-DR

Product Details

Material Thickness:

0.7-1.2mm Galvanized Steel

Forming Speed:

0-12m/min

Forming Stations:

10 Stations

Shaft Material:

Gcr15 High Grade Steel

Coil Inner Diameter:

460-520MM

Machine Weight:

About 4 Tons

Highlight:

1.2mm U Channel Roll Forming Machine

U Channel Roll Forming Machine

0.7-1.2mm channel making machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Standard packing

Delivery Time

75days after deposit

Payment Terms

T/T L/C

Supply Ability

10 sets per months

Product Description

0.7-1.2mm Galvanized Steel Cold Rolled U Channel U Track Steel Profile Roll Forming Machine
U channel machine Technical Parameter

Name	Items	Specifications
Material of coil	Material Thickness	0.7-1.2mm Galvanized steel
Forming system	Rolling Speed	About 0-12m/min
	Roller Stations	About 10 stations
	Roller Material	Gcr15 Steel with quenching, 60mm shaft
	Shaft	60mm
	Maim Motor Power	5.5kw
	Hydraulic cutting Power	5.5kw
	Electrical parts	Schneider
Cutting system	Material Of Cutting	CR12mov with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	220V, 60HZ,3 phase
	Control System	PLC Delta
	Weight	About 4.5 tons
	Way Of Drive	2 inches single chain
	Size of machine	Length 4500mm* Width 800mm* Height 1000m

U channel machine components

S.N	Equipment name	Quantity
1.	3Tons automatic un-coiler	1 set
2.	Feeding with guide	1 set
3.	Main roll forming machine	1 set
4.	Hydraulic cutting	1 set
5.	Control box system (including control box)	1 set
6.	4 meters out table	1 set

Working Flow of U channel machine

This U channel machine includes decoiler, roll forming system, hydraulic cutting system and out put tables.

The finished u channel product used for mesh deck on upright racking system

Decoiler----Feeding with guide--Roll forming--- hydraulic cutting---Run out tables

Profiles of U channel

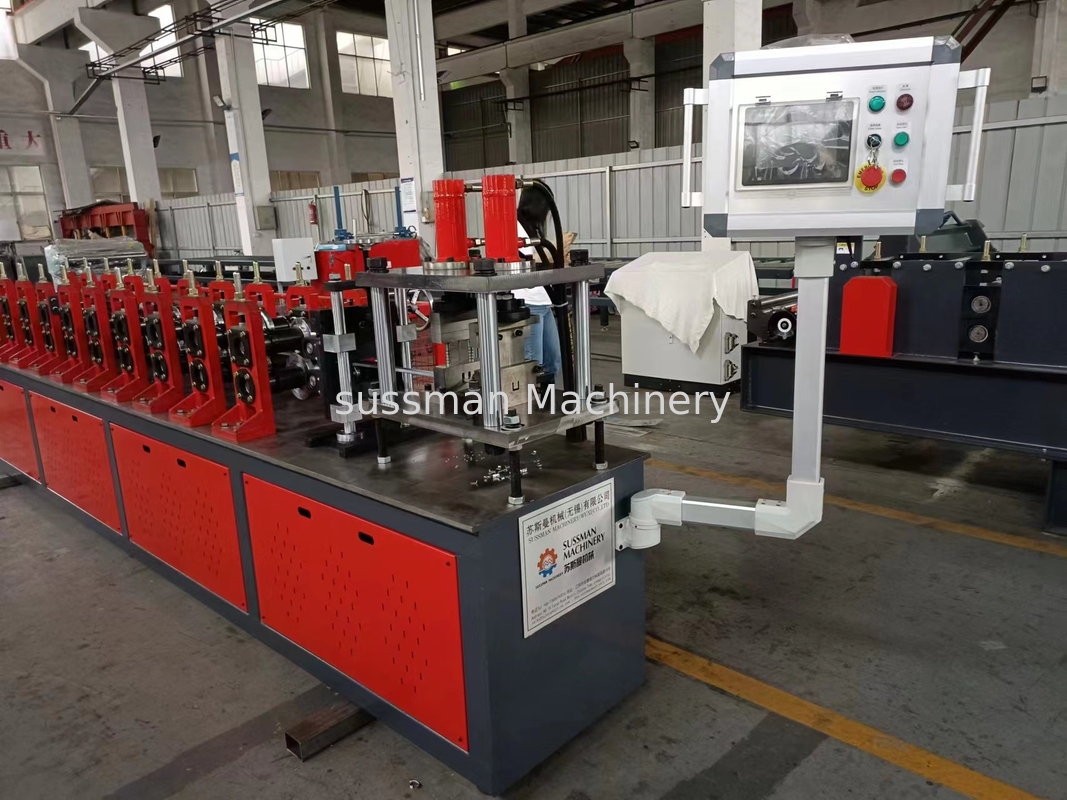

0.7-1.2mm Galvanized Steel Cold Rolled U Channel U Track Steel Profile Roll Forming Machine 0

0.7-1.2mm Galvanized Steel Cold Rolled U Channel U Track Steel Profile Roll Forming Machine 1
