Gcr15 Steel Rack Roll Forming Machine , Upright Roll Forming Making Machinery
  • Gcr15 Steel Rack Roll Forming Machine , Upright Roll Forming Making Machinery

Gcr15 Steel Rack Roll Forming Machine , Upright Roll Forming Making Machinery

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Forming Stations:
9 Stations
Roller Material:
Main Motor Power:
Hydraulic Power:
High Light:

racking roll forming machine


metal roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Supply Ability
10 sets/month
Product Description

Thickness 1-2mm Steel Upright Angle Roll Forming Machine Speed




1. Technical Parameter

  1. Running material: Galvanized steel Thickness – 1.0~2.0mm
  2. Forming speed:  5-12m/min
  3. Forming steps: 9 steps
  4. Roller material: Gcr15
  5. Material of principal axis: 45# steel
  6. Sprocket wheel: 45 steel high-frequencies quench; distance 25.4. Quantity: 13pcs
  7. Motor power: 5.5 KW
  8. Cut-off system: Adopts hydraulic pressure drive, cut off after forming.
  9. Hydraulic system electrical machinery power: 3KW
  10. Hydraulic system pressure: 10Mpa
  11. PLC Control system: Brand of Siemens Encoder is Japanese Omron brand; the Inverter is
  12. Siemens brand
  13. Overall Dimension of the main forming machine:4000mmX700mmX900mm
  14. Total weight:  3 ton approximately
  15. Un-coiler:  3 Ton capacity of manual un-coiler
  16. the punching press machine for the holes
  17. Power supply: 220V 60HZ, 3 phase



2. Working Flow

Un-coiler ------ Feeding device ---Punching --- Roll forming ----- PLC control --- Hydraulic cutting----

Run out table



3. Machine Components

3 ton passive decoiler 1 set
servo feeding  1 set
punching press machine  1 set
Main roll forming machine  1 set
PLC control box 1 unit
Hydraulic station 1 unit
Out table 2 Units


4. Profile

Gcr15 Steel Rack Roll Forming Machine , Upright Roll Forming Making Machinery 0


4. Machine Photo

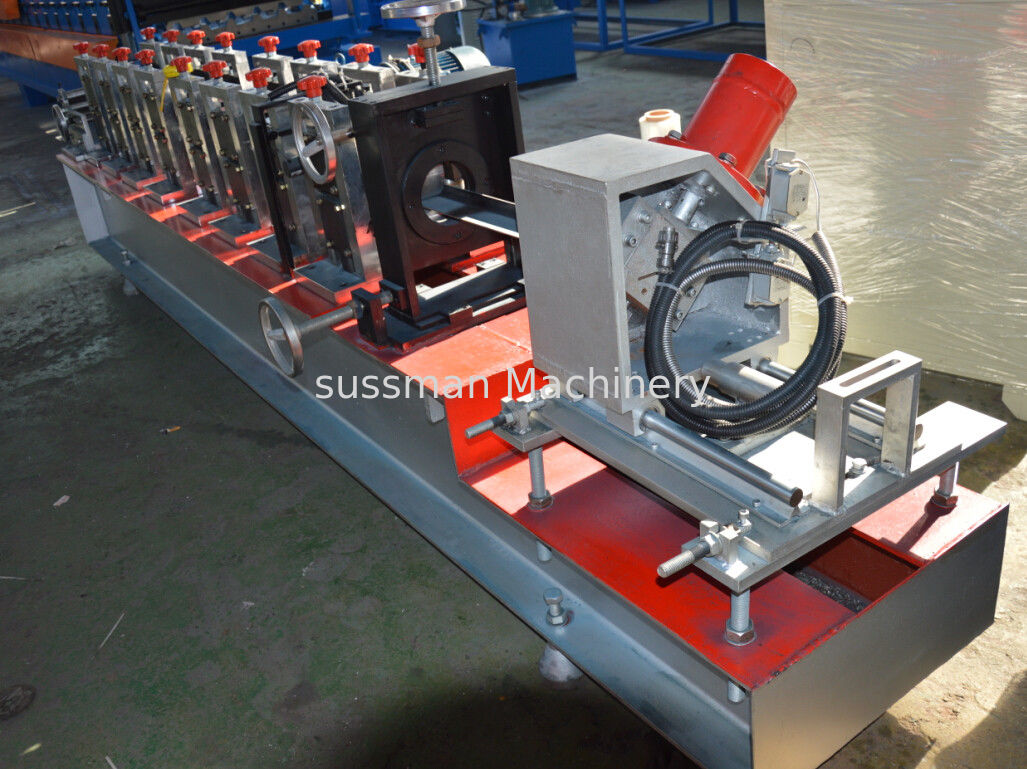

Gcr15 Steel Rack Roll Forming Machine , Upright Roll Forming Making Machinery 1


5.Our After-Sales Service Commitments


Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;


2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.


3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;


4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email




1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.


4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
