Hydraulic Punching C Channel Cold Roll Forming Machine 3 Ton Manual Decoiler

Hydraulic Punching C Channel Cold Roll Forming Machine 3 Ton Manual Decoiler

Technical Parameter

1.Hydraulic decoiler

• Forming thickness: 1.5-2.2 mm,galvanized coils yield strength≤G250MPa
• working speed: 12M/min(not include cutting and punching stop time)
• Hydraulic punching device: 1 set
• Notching device: 1 set
• roller stations: about 13 stations
• material of roller: bearing steel, quenching treatment.
• material of main shaft: 45# fine steel,
• diameter of main axis: ￠75mm
• main motor power: 7.5kW
• motor power of hydraulic station: 5.5 KW
• hydraulic station pressure: 12MPa
• electric control system: whole line adopted PLC control, Panasonic PLC
• cutting type: hydraulic drive, cut after forming
• material of cutting blade: Cr12mov quenching process

2. Working Flow

Uncoiling- infeed guiding-levelling- punching-roll forming- hydraulic cutting- output table- spare parts for reference

3. Main Structure and Characters

This channel machine is composed by 3T passive uncoiler, punching station, main forming machine, cutting unit, hydraulic station, control cabinet, output table.

4. Profile

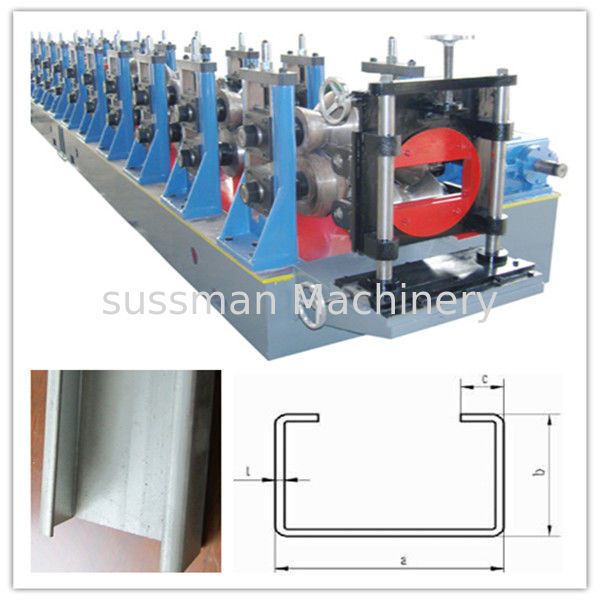

5. Machine Photo
