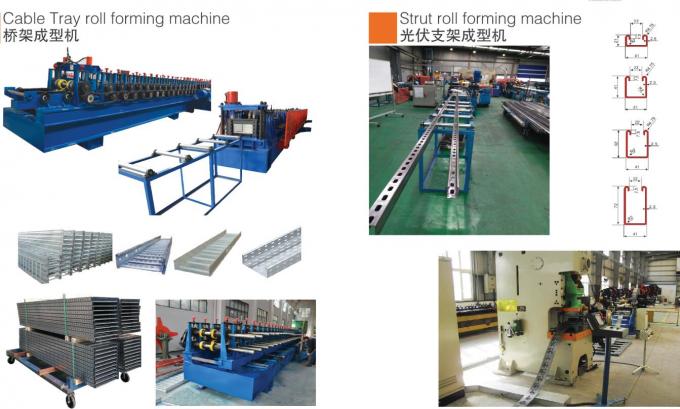

Blue 20 Station Cable Tray Roll Forming Machine 1.8-3.0mm Thickness

Blue 20 Station Cable Tray Roll Forming Machine 1.8-3.0mm Thickness
Blue 20 Station Cable Tray Roll Forming Machine 1.8-3.0mm Thickness Blue 20 Station Cable Tray Roll Forming Machine 1.8-3.0mm Thickness

Large Image :  Blue 20 Station Cable Tray Roll Forming Machine 1.8-3.0mm Thickness

Product Details:
Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: SM-CT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 75 days after deposit
Supply Ability: 10 sets/month

Blue 20 Station Cable Tray Roll Forming Machine 1.8-3.0mm Thickness

Material Thickness: 1.8-3.0mm Forming Speed: 4-5m/min
Maim Motor Power: 22kw Roller Material: Gcr15 With Quenching
Drive Way: Gearbox Transmission Roller Stations: About 20 Stations
High Light:

metal forming machine


cable tray machine

Blue 20 Station Cable Tray Roll Forming Machine 1.8-4.2mm Thickness
Machine Components

15 tons hydraulic decoiler 1 set
2Roller Leveller Machine1 set
3Servo feeding machine1 set
4Punching Press machine1 set
5Roll forming machine 1 set
6PLC system 1 set
7Post cutting device1 set
8Collecting tables 3m2 sets
9Hydraulic station1 set
10Spare Parts

1 set


1. 5 ton hydraulic De-coiler
Diameter: 420-560mm hydraulic expansion. Pictures for reference
Expansion: Hydraulic de-coiler
Capacity: 5000kg per mandrel
Max Coil Width: 1250mm

2. Leveling device
7 rolls leveling, 3 rolls up and 4 rolls down
Diameter is Ø 80mm, chrome and HRC60 heat treatment to secure the smooth surface
Leveling Raw Material thickness:1.5-2.5mm
Max Leveling Raw Material width: 1000mm
Power: 4.4kw

3. Feeding device
Feeding Servo feeding motor: about 4.4KW,Yaskawa(Japanese Brand)
Description: servo feeding can control the punching distance in precision, controlled by PLC, and the feeding tolerance can be+-0.05mm, the servo motor can control the speed, and can accept the input signal, and react quickly, and performance well, the touch screen can display the rotating speed, the length and the quantity, it can be controlled by the manual and auto modes.

4. Punching Moulds description
As for the profiles, total need 2 sets of punching moulds, when need to punching the first hole drawing, change the punching mould 1, when punching the second hole drawing, change the punching mould 2, ect. When the punching heads broke, they can be removed, and changed by the new punching heads.
Punching moulds material: Cr12Mov Quenching HRC58-62degree Shanghai NO.5 Steel (China best brand for steel)
5. Cutting:
5.1 The cutter blade material: Cr12mov HRC58-62 degree
5.2 Cutting after forming: Cut the sheet after roll forming to required length
5.3 Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
5.4 Material of blade: CR12with heat treatment
5.5 Length measuring: Automatic length measuring
5.6 Tolerance of length: 6m+/- 1.5mm

6. Out tables:
1.Length: 1.5 meters
2.Number: 2 units

2. Flow Chart
Uncoiling—feeding with leveling—press punching —pre-cutting----- Roll forming— —Products collecting
3. FAQ
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and have skilled technicians available across the world.
2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology to improve our machines constantly. We have experts from domestic-leading machinery corporation as well as sals elites.
Wokers, traders, designed as a family to insure best interest of our clints.

3), Q: How does your factory do regarding quality control?
A: Quality is priority. Our people always attach great importance to quality control during the whole process. Every product will be fully assembled and carefully tested before packed.
4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
5), Q: Will you deliver the right goods as ordered?
A: Yes, we will. The core of our company culture is honesty and credit. We are 24 hours with you.
