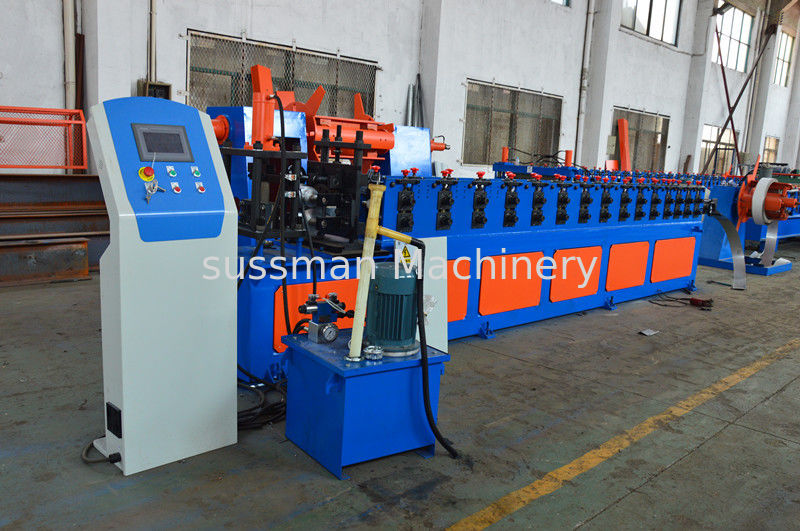

Galvanized Steel Roll Forming Line , Racking Roll Forming Machine

Galvanized Steel Roll Forming Line , Racking Roll Forming Machine
Galvanized Steel Roll Forming Line , Racking Roll Forming Machine Galvanized Steel Roll Forming Line , Racking Roll Forming Machine Galvanized Steel Roll Forming Line , Racking Roll Forming Machine

Large Image :  Galvanized Steel Roll Forming Line , Racking Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: Sussman
Certification: SGS,CE.ISO
Model Number: SS-BB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard packing
Delivery Time: 70 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month

Galvanized Steel Roll Forming Line , Racking Roll Forming Machine

Name: Box Beam Roll Forming Machines Material: Galvanized Steel Plate
Material Thickness: 1.0mm-2.5mm Forming Stations: 15 Stations
Roller Material: GCR12 Bearing Steel Dirve System: Chain Drive
Power Supply: 440V, 60Hz, 3Phase Or Customized Forming Speed: 8-10m/min
Machine Weight: About 8 Tons Machine Size: 12mx1.4mx1.6m
High Light:

racking roll forming machine


steel roll forming machine

High Speed Rack Shelf Roll Forming Machine 15 Roller Stations Worm Gear Box


Technical Parameter


Forming speed: 0~15M/Min

Product speed: 8~10M/min

Roller material: GCR12 bearing steel

Forming stations: 15 stations + 4 fold ed machine

Shaft diameter: 75mm

Forming structure: Guiding column,chrome-plated

Machine base frame: tube welding structure ,milling gauntry,punch holes automatic

Transmission type: worm gear box

Motor power of main machine: 7.5KW*2sets

Bearing: HRB brand ,needle roll bearing, taper bearing

Bolt: 8.8 grades

Weight: about 8 tons

Cutting die : Cr12MoV

Profile: +/-0.5mm as drawing

Cutting Length Tolerance + / - 1 mm


Working Flow of Roll Forming Machine


Manual de-coiler-->leveling machine -- roll forming machine –Cutting device–>Product Stand Tables



working flow.jpg


Main Components


No. Item Name Quantity Remark
1 Manual de-coiler 1 set 3 tons
2 Leveling machine 1set Wannan motor
3 Cutting device 1 set Engineer define
4 Punching device 2 sets Hydraulic Prepunching
5 Roll Forming Machine 1 set ¢75mm
6 Cutter mold 6 units Engineer define
7 Hydraulic station 1 set Engineer define
7 Product stand table 5 sets 2 m*5
8 Folded machine 1 set ¢75mm *4
9 Tool Box 1 box standard
10 Books 1 book

Use manual, Wire diagram,

Machine layout drawing,

Maintenance book,

11 Spare parts 1 set


Roll Formed Pallet Rack Advantages:

  • Adaptable: Adapts to the weight, volume and size of many products and the teardrop style is interchangeable among different manufacturers. Excellent for warehouses storing products with varying sizes.
  • Convenience: A boltless, easy to assemble product. Provides great stock management with direct access to each pallet. Because the clips can be moved quickly, shelves can be easily changed to accommodate various heights and load sizes.
  • Cost-Effective: Less expensive and more adaptable than structural steel racks, the cost provides a good return on investment. The roll-formed design, using flat rolled carbon steel, still provides strength necessary for most applications.

Photo Gallery


box beam roll forming making machine.jpg

 box beam roll forming machine.jpg





1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.


4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
