Stud And Track Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
Material 1mm Galvanized Coils or Black Steel Top Hat Stud Roll Forming Machine Chain Transmission
Technical Data
| Item NO |
Description |
Offered specification |
| 1.0 | Roll forming machine | Ceiling batten |
| 1.1 | Rolling speed | 25-30m/min(not include cutting time) |
| 1.2 | Rolling thickness | 0.48 mm to 0.55mm |
| 1.3 | Raw material | G550 Galvanized coils |
| 1.4 | Main motor | 5.5kw with gear box |
| 1.5 | PLC | Panasonic Brand |
| 1.6 | dimension | About 5500×435×1000(mm) |
| 1.7 | Effective width | 66mm |
| 1.18 | Voltage | 220V, 60HZ, 3phase |
| 1.9 | Roller stations | About 13 stations |
| 1.10 | Roller material | Cr40 Nitriding |
| 1.11 | Shaft diameter | Φ50mm ,material is 45# forge steel |
| 1.12 | Transmission | By chain One inch chain |
| 1.13 | Material of chain | 45# forged steel with frequency quenching |
| 1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.15 | Tolerance | 6m+-1.5mm |
2. Working Flow
Decoiler—feedingwithguide—Rollforming——Cutting—Products collecting
3. Machine Components
| Machine list | 3 ton passive de-coiler | 1 set | |
| Feeding with guide | 1 set | ||
| Main roll forming machine | 1 set | ||
| PLC Control box | 1 unit | ||
| Hydraulic station | 1 unit | ||
| Stop cutting device | 1 unit | ||
| Safety cover | 1 unit | ||
| Out table | 2 units |
4. Profile Drawing

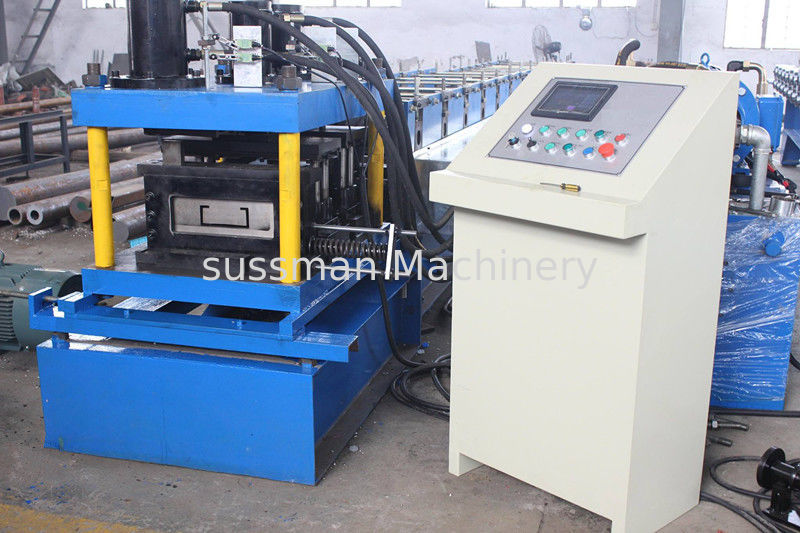

5. Machine Photo
6.Other components
