Automatic Stud And Track Roll Forming Machine 10 Roller Stations
1. Technical Parameter
Material thickness: 1mm galvanized coils or black steel
profile width: about 22mm
profile height: about 5.5mm
rolling speed: 10-15m/min
roller stations: 10 stations
roller material: 45# steel, with quenching 60mm shaft
main motor power: 3Kw
hydraulic cutting power: 3Kw
cutting blade material: Cr12
power supply: 380V, 50Hz, 3Phase
machine weight: about 2.5Tons
machine size: Length 3500mm* Width 500mm* Height 800mm
2. Working Flow
Feeding with guide—Rollforming——Cutting—Products collecting
3. Machine Components
3 ton passive decoiler | 1 set |
Main roll forming machine | 1 set |
PLC control box | 1 unit |
Hydraulic station | 1 unit |
Out table | 2 units |
4. Profile Drawing

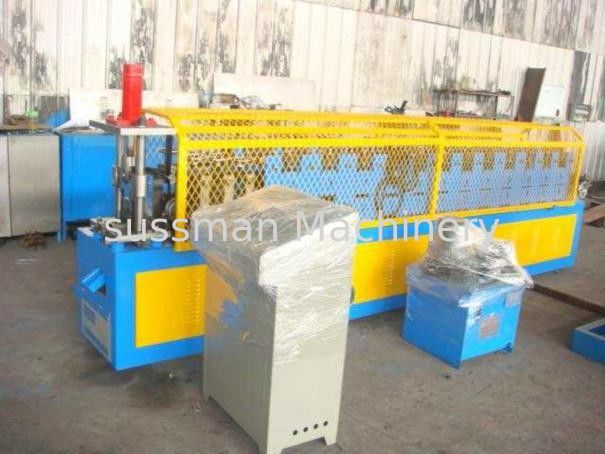

5. Machine Photo
6.Components
7.Our After-Sales Service Commitments
1.Guidelines for installation and commissioning of equipment:
Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;
2.Provide training for operation and maintenance personnel:
Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;
a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;
b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.
3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;
