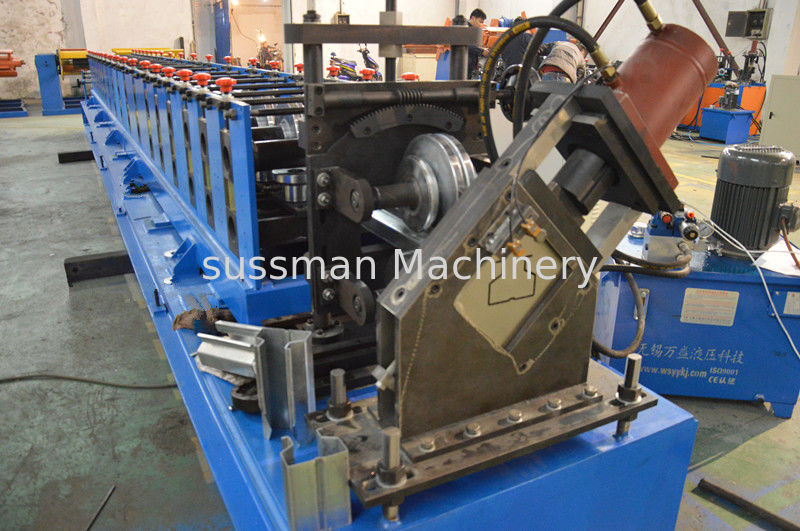

Servo Feeding Device Upright Frame Cold Roll Forming Machine 11 kw
Main Roll forming machine technique data
Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
Working Speed: 12-15 meters / min
Forming Steps: 18 stations
Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts
Main Power with reducer: 11KW WH Chinese Famous
Cutting: Hydraulic Cutting Cr12mov
Material of Cutting Knife: Cr12Mov, Quench HRC58-62
Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
The whole machine is controlled by industry computer-PLC.
PLC--Panasonic, Japan English and Chinese Language
Touch Screen--Panasonic Japan
Encoder--Omron, Japan
Electric parts--Schneider
Cutting holder: straight cutting by 3 pieces of blades
Main Components
No. |
Item Name |
Quantity |
Remark |
1 |
Manual de-coiler |
1 set |
3 tons |
2 |
Leveling machine |
1set |
Wannan motor |
3 |
Cutting device |
1 set |
Engineer define |
4 |
Punching device |
2 sets |
Hydraulic Prepunching |
5 |
Roll Forming Machine |
1 set |
¢75mm |
6 |
Cutter mold |
6 units |
Engineer define |
7 |
Hydraulic station |
1 set |
Engineer define |
7 |
Product stand table |
5 sets |
2 m*5 |
8 |
Folded machine |
1 set |
¢75mm *4 |
9 |
Tool Box |
1 box |
standard |
10 |
Books |
1 book |
Use manual, Wire diagram, Machine layout drawing, Maintenance book, |
11 |
Spare parts |
1 set |
|
Roll Formed Pallet Rack Advantages:
Working Flow of Roll Forming Machine
Manual de-coiler-->leveling machine -- roll forming machine –Cutting device–>Product Stand Tables
