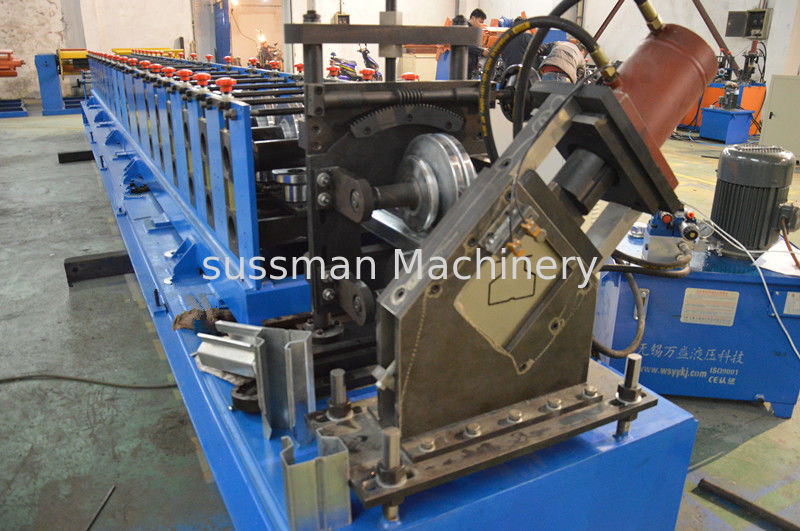

Storage Racking Roll Forming Machine Customize Fully Automatic
Technical Parameter
Item NO |
Description |
Offered specification |
1 |
Suitable material thickness |
1.2-2.0mm galvanized coil S235JR |
2 |
Material width |
319mm Effective width 120mm |
3 |
Forming Steps |
18 forming stations |
4 |
Production line speed |
12-15m/min not including cutting stop time |
5 |
Material of Roller |
Gcr15, Quench HRC58-62 Plated Chrome |
6 |
Material of Shaft |
45# Advanced Steel (Diameter: 76mm), thermal refining |
7 |
Driven system |
Chain Driven 1.5 inches 20A double chain with longer shafts |
8 |
Main Power with reducer |
11KW
|
9 |
Cutting |
Hydraulic Cutting Cr12mov Quench HRC58-62 |
10 |
Hydraulic Station Power: |
5.5kw |
11 |
Hydraulic station pressure |
12Mpa |
12 |
Control system |
PLC Panasonic with tough screen |
13 |
Encoder |
Omron |
14 |
Electric parts |
Schneider |
15 |
Tolerance |
6m+-1.5mm |
16 |
Machine Weight |
About 8 ton |
17 |
Machine dimension |
about 7500mm*800mmm*800mm |
Main Components
Serial No. |
Commodity & Description |
Quantity |
1 |
5T manual uncoiler |
1 set |
2 |
Leveing guiding |
1 set |
3 |
Servo feeding device |
1 set |
4 |
Punching machine |
1 set |
5 |
Main roll forming machine |
1 set |
6 |
Hydraulic station |
1 set |
7 |
Cutting device |
1 set |
8 |
Finished products tabel |
1 set |
9 |
PLC control system |
2 sets |
10 |
Out tables |
1 sets |
11 | Spare parts | 1 sets |
Working Flow of Roll Forming Machine
Uncoiling—Feeding&Leveling-Punching--Roll forming—Cutting—Products collecting
Profile of product
Photo Gallery
Loading pictures
Our After-Sales Service Commitments
Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts
The detailed measures are as follows:
1.Guidelines for installation and commissioning of equipment:
Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;
2.Provide training for operation and maintenance personnel:
Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;
a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;
b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.
3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;
4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.
We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
