Stud And Track Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
Mild Steel Drywall Roof Truss Steel Frame Roll Forming Equipment 12 Stations
1. Technical Parameter
Material thickness: 0.8-1.0mm
Material: galvanized coils or black steel
profile width: about 22mm
profile height: about 5.5mm
rolling speed: 10-12m/min
roller stations: 12 stations
roller material: 45# steel, with quenching 60mm shaft
main motor power: 7.5Kw
hydraulic cutting power: 4Kw
cutting blade material: Cr12
power supply: 380V, 50Hz, 3Phase
machine weight: about 3.5Tons
machine size: Length 4500mm* Width 500mm* Height 800mm
2. Working Flow
Feeding with guide—Punching-----Rollforming——Cutting—Products collecting
3. Machine Components
| 3 tons manual decoiler | 1 set |
| Feeding with guide | 1 set |
| Cutting device | 1 set |
| Main roll forming machine | 1 set |
| PLC control box | 1 unit |
| Hydraulic station | 1 unit |
| Out tables | 2 units |
4. Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.

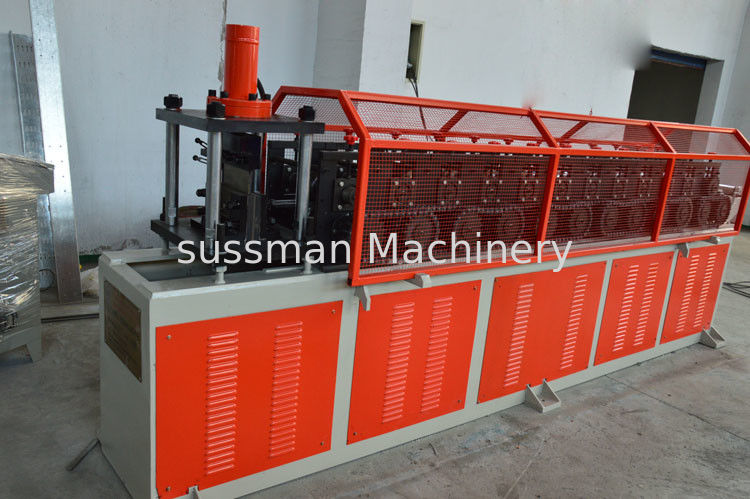

5. Machine Photo
