Product Details:
|
| Material Thickness: | 0.2-1.2mm Galvanized Steel | Decoiler: | 3 Tons Manual |
|---|---|---|---|
| Foring Speed: | 10-12m/min | Roller Stations: | About 13 Stations |
| Roller Material: | Gcr15 Steel With Quenching | Shaft Material: | 45# Steel Diameter 75mm Shaft |
| Main Motor Power: | 7.5 Kw | Material Of Cutting: | CR12 With Quench Treatment |
| Way Of Drive: | 1 Inch Single Chain | Control System: | PLC With Touch Screen |
| Weight: | About 3 Tons | ||
| High Light: | metal stud and track roll forming machine,drywall stud roll forming machine |
||
Light Weight Stud Roll Former Machine With Punching System, Steel Frame Machine
Technical Parameter
|
|
Items |
Specifications |
|
Material of coil |
Material Thickness |
0.2-1.2mm galvanized |
|
De-coiler |
Weight |
3 ton manual |
|
Forming system |
Rolling Speed |
10-12 m/min |
|
|
Roller Stations |
About 13 stations forming/ 13 stations |
|
|
Roller Material |
Gcr15 Steel with quenching |
|
|
Shaft Material |
45# Steel Diameter 75mm shaft
|
|
|
Maim Motor Power |
7.5 kw |
|
|
Hydraulic cutting Power |
4 kw |
|
Cutting system |
Material Of Cutting |
CR12 with quench treatment |
|
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
|
Cutting blade |
1 set of cutting blade |
|
Electrical control system |
Electric Source |
220V, 60HZ,3 phase
|
|
|
Control System |
PLC with touch screen Japanese Panasonic and Yaskawa Brand |
|
|
Weight |
About 3 tons |
|
|
Way Of Drive |
1 inch single chain |
|
|
Size of machine |
Length 5500mm* Width 800mm* Height 1500m |
Machine Components
|
3 ton passive de-coiler |
1 set |
|
Main roll forming machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
Cutting device |
1 unit |
|
Out table |
2 units |
Flow Chart
Decoiler—feedingwithguide—Rollforming——Cutting—Products collecting
Profile Drawing

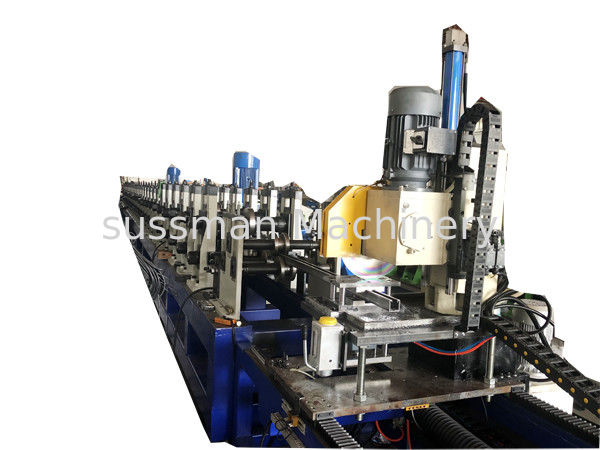

Machine Photo
