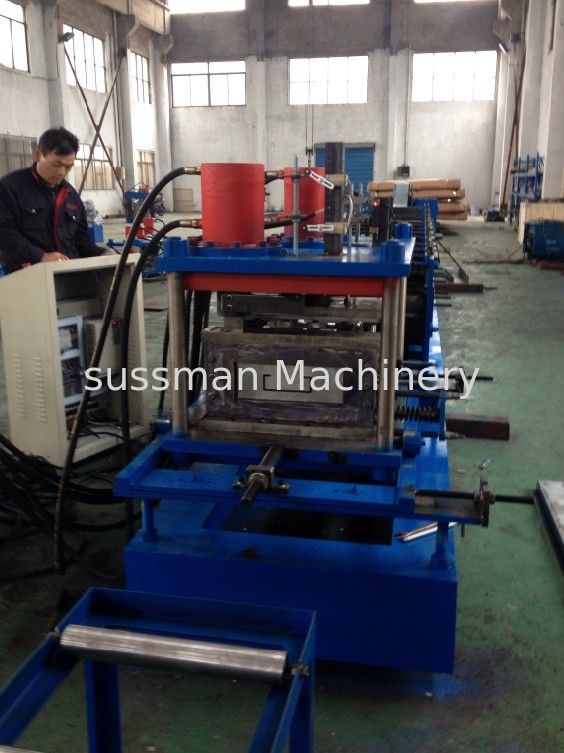

Heavy Duty Warehouse Shelving Rack Beam Roll Forming Machine With Seaming
  • Heavy Duty Warehouse Shelving Rack Beam Roll Forming Machine With Seaming
  • Heavy Duty Warehouse Shelving Rack Beam Roll Forming Machine With Seaming
  • Heavy Duty Warehouse Shelving Rack Beam Roll Forming Machine With Seaming
  • Heavy Duty Warehouse Shelving Rack Beam Roll Forming Machine With Seaming

Heavy Duty Warehouse Shelving Rack Beam Roll Forming Machine With Seaming

Place of Origin China
Brand Name SUSSMAN
Certification SGS,CE.ISO
Model Number SH-BB
Product Details
Box Beam Roll Forming Machine
Galvanized Steel Plate
Material Thickness:
Forming Stations:
15 Stations
Roller Material:
GCR12 Bearing Steel
Dirve System:
Chain Drive
Power Supply:
440V, 60Hz, 3Phase
Forming Speed:
Machine Weight:
About 8 Tons
Machine Size:
High Light:

steel roll forming machine


metal roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
standard packing
Delivery Time
60-90 days
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

Heavy Duty Galvanized Steel Warehouse Shelving Rack Beam Roll Forming Machine With Seaming Machine
 Technical Parameter
 Forming speed: 0~15M/Min
Product speed: 8~10M/min
Roller material: GCR12 bearing steel
Forming stations: 15 stations + 4 fold ed machine
Shaft diameter: 75mm
Forming structure: Guiding column,chrome-plated
Machine base frame: tube welding structure ,milling gauntry,punch holes automatic
Transmission type: worm gear box
Motor power of main machine: 7.5KW*2sets
Bearing: HRB brand ,needle roll bearing, taper bearing
Bolt: 8.8 grades
Weightabout 8 tons
Cutting die : Cr12MoV
Profile: +/-0.5mm as drawing
Cutting Length Tolerance + / - 1 mm
Main Components


Item Name




Manual de-coiler

1 set

3 tons


Leveling machine


Wannan motor


Cutting device

1 set

Engineer define


Punching device

2 sets

Hydraulic Prepunching


Roll Forming Machine

1 set



Cutter mold

6 units

Engineer define


Hydraulic station

1 set

Engineer define


Product stand table

5 sets

2 m*5


Folded machine

1 set

¢75mm *4


Tool Box

1 box




1 book

Use manual, Wire diagram,
Machine layout drawing,
Maintenance book,


Spare parts

1 set



Roll Formed Pallet Rack Advantages:

  • Adaptable: Adapts to the weight, volume and size of many products and the teardrop style is interchangeable among different manufacturers. Excellent for warehouses storing products with varying sizes.
  • Convenience: A boltless, easy to assemble product. Provides great stock management with direct access to each pallet. Because the clips can be moved quickly, shelves can be easily changed to accommodate various heights and load sizes.
  • Cost-Effective: Less expensive and more adaptable than structural steel racks, the cost provides a good return on investment. The roll-formed design, using flat rolled carbon steel, still provides strength necessary for most applications.

Working Flow of Roll Forming Machine
Manual de-coiler-->leveling machine -- roll forming machine –Cutting device–>Product Stand Tables
working flow.jpg
 Profile Drawing of Box beam
Heavy Duty Warehouse Shelving Rack Beam Roll Forming Machine With Seaming 1
beam sample-Crop.jpg

Loading pictures

Our After-Sales Service Commitments


Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;


2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.


3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;


4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email




1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.


4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
