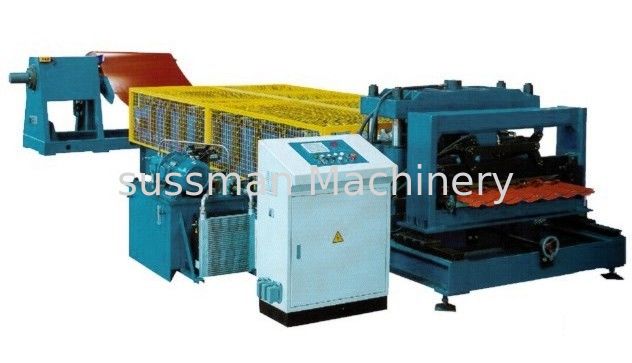

Step Glazed Tile Roll Forming Machine

Place of Origin	Wuxi Jiangsu China
Brand Name	SUSSMAN MACHINERY
Certification	CCC, SGS, ISO9001, CE
Model Number	SH-GT

Product Details

Material:

Galvanized Steel And Colorcoated Steel Coil

Forming Speed:

3-5m/ Min

Roller Station:

12 Stations

Main Motor Power:

7.5Kw

Material Thickness:

0.3-0.8mm

Power Supply:

380V, 50Hz, 3Phase

Dirve System:

Chain Drive

Control System:

PLC With Touch Screen

Machine Size:

8.5mx1.8mx1.4m

Highlight:

roofing sheet roll forming machine

roof tile roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Standard package with film, plastic and steel wire.

Delivery Time

Shipped in 60 working days after payment

Payment Terms

L/C, T/T, Western Union

Supply Ability

10 sets per month

Product Description

Glazed tile roll forming machine

Technical Parameter

Item NO.	Description	Offered specification
1	Product Line speed	4-5m/min(not include cutting )
2	Suitable material thickness	0.3-0.8mm
3	Raw material	galvanized coils yield strength≤G250MPa
4	Dimension	8000×1700×1500(mm) about
5	Levelling device	7 roller levelling including 3 top rollers and 4 bottom rollers
6	Roller stations	16 stations
7	Roller material	bearing steel, quenching treatment
8	Shaft diameter	Φ75mm ,material is 45# forge steel
9	Transmission	By chain 1 inch 20A double chain with longer shafts
10	Material of chain	45# forged steel with frequency quenching, 12A
11	Material of cutting	Cr12Mov with quench HRC58-62°
12	Main motor power	7.5kw
13	Motor power of hydraulic station	4kw
14	Hydraulic station pressure	12Mpa
15	Tolerance	6m+-1.5mm
16	Frame	H Beam

Main Components

Machine Component	Quantity
5 ton passive decoiler	1Set
Main roll forming machine	1Set
Hydraulic station	1Set
Cutting device	1 Set
Finished products tabel-	2Set
PLC control system	1Set
Spare part	1Set

Advantage for Roll Forming Machine

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Afrer-sales service

Working Flow

Decoiler ---- Feeding --- Roll Forming ---- Cutting ---- Run out table

Step Glazed Tile Roll Forming Machine 0

Profile drawing of product

Step Glazed Tile Roll Forming Machine 2

Step Glazed Tile Roll Forming Machine 3

Photo Gallery

Step Glazed Tile Roll Forming Machine 5

Step Glazed Tile Roll Forming Machine 6

Step Glazed Tile Roll Forming Machine 7
