Rack Roll Forming Machine
>
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | CE.SGS.ISO |
| Model Number | SS-RS |

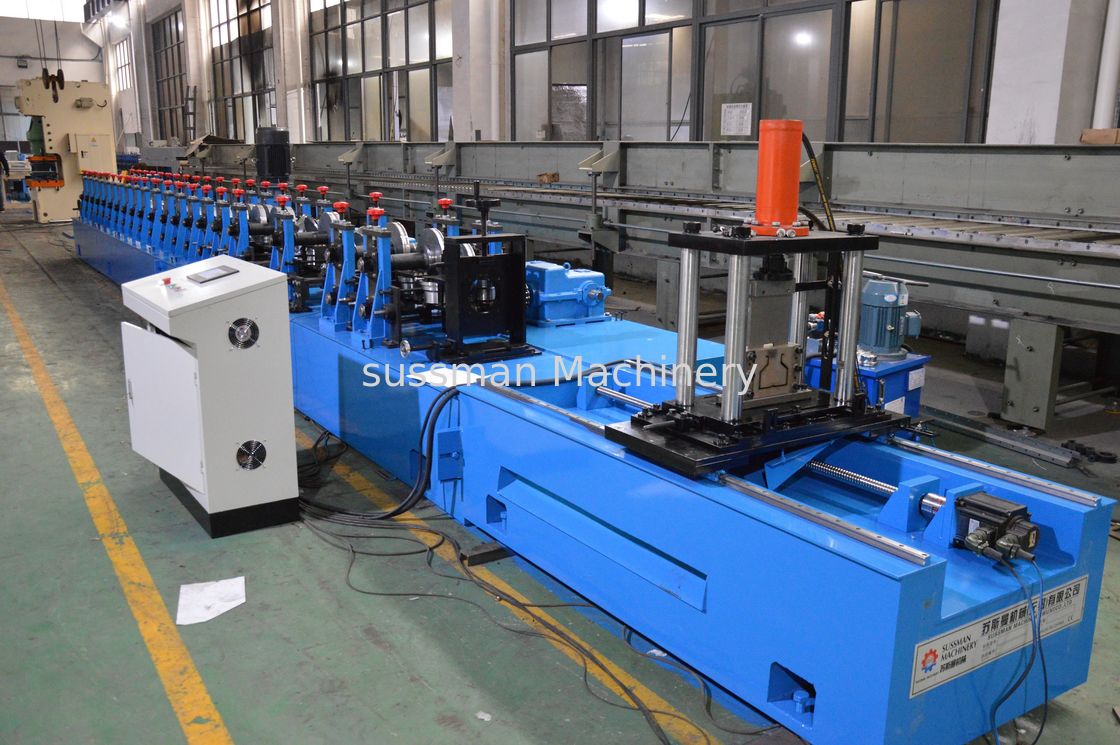

Galvanized Steel S235JR Rack Roll Forming Machine Chain Driven Multi Language
Technical Parameter
1. Suitable Plate Material: thickness 1.2-2.0mm, Galvanized steel S235JR
2. Working Speed: 12-15 meters / min
3. Forming machine: 18 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts
7. Main Power with reducer: 11KW WH Chinese Famous
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. Hydraulic Station Power: 5.5KW
11. The whole machine is controlled by industry computer-PLC.
12 PLC--Panasonic, Japan English and Chinese Language
13. Touch Screen--Panasonic Japan
14. Encoder--Omron, Japan
15. Electric parts--Schneider
16. Outline of main about 7500mm*800mmm*800mm
17. Weight : about 8 tons
Main Components
|
Serial No. |
Commodity & Description |
Quantity |
|
1 |
5T manual uncoiler |
1 set |
|
2 |
Leveing guiding |
1 set |
|
3 |
Servo feeding device |
1 set |
|
4 |
Punching machine |
1 set |
|
5 |
Main roll forming machine |
1 set |
|
6 |
Hydraulic station |
1 set |
|
7 |
Cutting device |
1 set |
|
8 |
Finished products tabel |
1 set |
|
9 |
PLC control system |
2 sets |
|
10 |
Out tables |
1 set |
|
11 |
Spare parts | 1 set |
Working Flow
Uncoiling—Feeding&Leveling-Punching--Roll forming—Cutting—Products collecting
Advantage of machine
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Profile of product
Photo Gallery
