Payment & Shipping Terms:
|Material Thickness:||1mm Galvanized Coils Or Black Steel||Profile Width:||About 22mm|
|Profile Height:||About 5.5mm||Roller Stations:||10 Stations|
|Main Motor Power:||3Kw||Hydraulic Cutting Power:||3Kw|
|Machine Weight:||About 2.5 Tons||Machine Size:||3500mm X 500mm X 800mm|

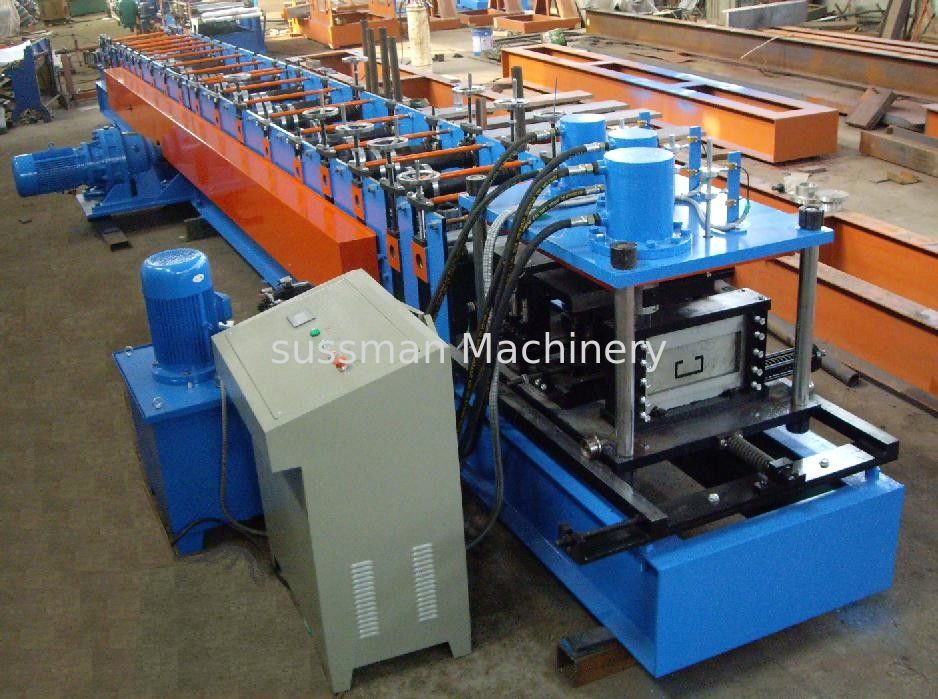

Automatic Stud And Track Roll Forming Machine 10 Roller Stations
1. Technical Parameter
Length of the main part: about 2900 800 1400
Weight of main part: 3 tons
Voltage: 380V/50HZ3Phase (as customer's request)
Roller fixer: Guide column
Frame: middle plate welded
Memorial arch frame type
Frame thickness: 25mm
Drive mode: gear
Material of rollers: GCr12MoV
Material of shafts: 45# steel with tempering
Diameter of shafts: φ40mm
Number of rollers: 8 rollers
Main power: 3kw
Cyclical planetary gear speed reducer)
2. Working Flow
Feeding with guide—Rollforming——Cutting—Products collecting
3. Machine Components
|3 ton passive decoiler||1 set|
|Main roll forming machine||1 set|
|PLC control box||1 unit|
|Hydraulic station||1 unit|
|Out table||2 units|
4. Profile Drawing
U shape carrying U track roll forming machine is to prudece the U type suspended material to for the steel structure roofing.If ceiling participation needs big loading ability or a large area building of the ceiling, U shape keel as the carrying keel is necessary. When installation, first U type bearing keel and then install (main keel) hanger which will be U-shaped main keel and the boom of connection, and then T bar participation.ust talking from ceiling partition, U shape keel is used widely. Same it also could be used as the bearing keel in drywall building.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
