|Forming Stations:||28 Stations||Dirve System:||Chain|
|Forming Speed:||8-20m / Min||Control System:||PLC With Touch Screen|
|Power Supply:||380V, 50Hz, 3Phase||Machine Weight:||About 8 Tons|
steel forming machines,
metal forming equipment

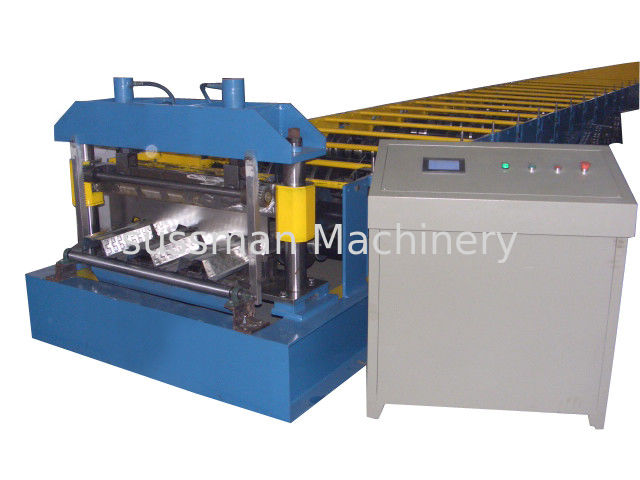

Deck floor roll forming machine
1. Main Motor Power: 22KW
2. Hydraulic cutting power: 4KW
3. Drive Sprocket:Pitch of 25.4mm
4. Rack:H-beam welding adopted and destressing
5. Number of Rack: 28
6. Unit Dimensions: 9 m long, 1.2m wide and 1.6m high
7. Production Speed: 8--20 m/min
8. Axle Diameter: 80 mm and thermal refining
9. Bulging Axle Diameter: 80 mm and thermal refining
10. Bulging Roll Material: 45# Steel
11. Heat Treatment of Bulging Roll: 45# Steel Plating
12. Number of Forming Stations:20
13. Forming Shear Blade Material: 45# Steel
14. Heat Treatment of Sharing Blade: HRC58°C-62°C
15. Rolling Thickness: 0.6-1.5mm
16. Rolling Material: 45# Steel
17. The single surface of Cr electroplating rollers: 0.05mm
18. The product dimensions is up to the PRC's standard for Construction Product: GB/T12755-91
19. Scale Accuracy: 10m±1mm
|Serial No.||Commodity & Description||Quantity|
|1||5T manual uncoiler||1 set|
|2||Leveing guiding||1 set|
|3||Servo feeding device||1 set|
|4||Punching machine||1 set|
|5||Main roll forming machine||1 set|
|6||Hydraulic station||1 set|
|7||Cutting device||1 set|
|8||Finished products tabel||1 set|
|9||PLC control system||2 sets|
|10||Out tables||1 set|
|11||Spare parts||1 set|
Working Flow of Roll Forming Machine
Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting
Profile of product
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
Besides, the width is adjustable.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
3. How to visit your company?
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Wuxi Station (30 minutes), then we can pick up you.
4. What can you do if the machine broken?
Our machines' warranty period is 12 months, if the broken parts can't repair, we will send the new parts replace the broken parts for free, but you need pay the express cost If after warranty period, we can through negotiation to solve the problems, and we supply the technical support for the whole life of the machine.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address. we have rich experience in transportation.
6. You are trade company or factory?
We are factories.
7. Why your price is higher than others?
As we persist on that factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.
8. How long the machine could be made?
Normally speaking, deck floor roll forming machine could be made about 60 working days. If you need machines in a hurry, we can try it short time.
Suhang Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile
of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down
Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products
are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other
construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and
steel production enterprises' growing demands.
Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
