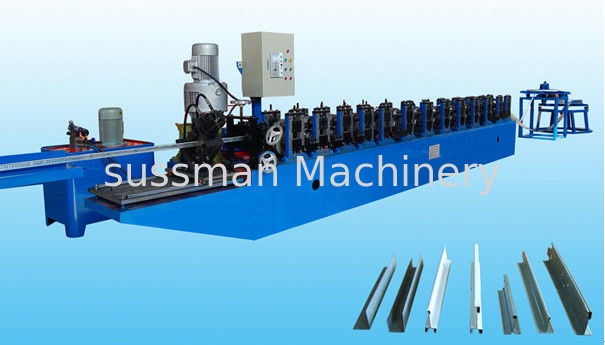

Stud And Track Roll Forming Machine
>
|
| Place of Origin | jJiangsu,China |
| Brand Name | Sussman |
| Certification | CE ISO 9001 |
| Model Number | SM-TB |
Aluminum Ceiling Tee Bar Machine / Steel Ceiling T Grid Carrier Making Machine
T Grid Roll Forming Machine Technical Parameter
|
1
|
Suitable raw material | Yield strength | 235MPa(or other high strength steel) |
| Thickness(mm) | 0.4-0.7 | ||
| width(mm) | According to final design | ||
| 2 | Manual uncoiler’s capacity | Max.5tons | |
| 3 | Forming speed(m/min) | About 18-20m/min | |
| 4 | Main motor power(KW) | 5.5kw | |
| 5 | Hydraulic power(KW) | 3kw | |
| 6 | Forming roller groups | Around 19-20 groups | |
| 7 | Raw material of forming roller | High quality No.45 steel | |
| 8 | Raw material of cutting blade | Cr12mould steel with quenched treatment | |
| 9 | controlling system | Mitsubishi PLC& converter | |
| 10 | Suitable industrial voltage | According to your special requirement | |
| 11 | Machine weight | About 6.2tons | |
T Grid Roll Forming Machine Machine’s Components
|
5 tons manual uncoiler with new brake design |
1set |
|
Coil sheet guiding and adjust department |
1set |
|
File covered department(optional) |
1set |
|
Main roll forming systerm |
1set |
|
Hydraulic cutting department |
1set |
|
Hydraulic station |
1set |
|
PLC control table |
1set |
|
Final product runout table |
1set |
Working Flow of Roll Forming Machine
uncoiling the sheet---guiding the sheet---covering the film---roll forming---measuring the length---cutting the panel---panels to the support
Standard Profile drawing of product
Loading pictures
Our machine’s warranty time
We offer 12 months quality guarantee time starting from the date of delivery. When delivery, we will ship a set of wearing parts for free; within the warranty period, maintenance of equipments and replacement of parts of equipment are charge-free. Any problem happened and caused by the machine’s quality, the seller should response in 24 hours, find out the problem and offer the solve solution in 48 hours through the method of telephone, email, video, etc. After guarantee is expired, we supply long term maintenance service and supply of parts of equipment at cost price.
We offer sale after service for life. Actually, the machine will be inspected well in our workshop before delivery. We will send one technician to your factory to install the machine if you need extra installation, training service; the seller should arrange offer technical back-up and assign a technician people to the buyer’s part.
