Stud And Track Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |

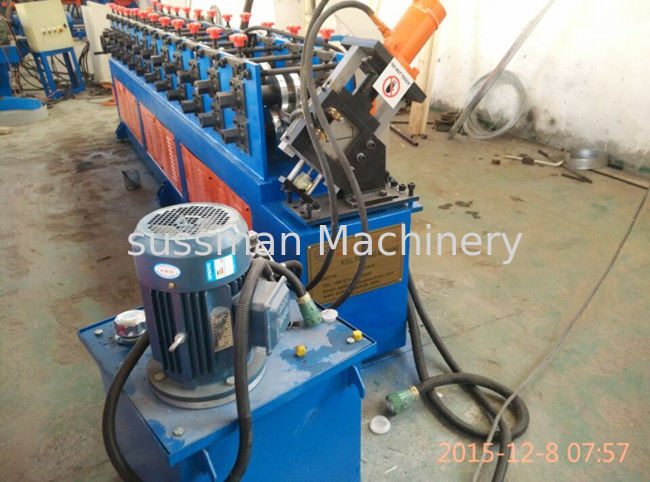

metal stud and track roll forming machine
metal stud and track roll forming machine offer builders a competitive alternative to traditional wood trusses.This machine provides significant improvements over other light gauge steel trusses currently available. Flexibility and design advantages allow architects, engineers, contractors and owners' exceptional versatility and performance characteristics not available with any other type of truss material.Our machine could update with the fashio for providing new design increases material efficiency, ease of fabrication, simplicity of erection, and improved safety of material handling. Nomatter for running business or for big construction, this machine will be good helper for you.
Processing technique and deployment
Flow chart : Decoiler-- Roll Forming--PLC System—Hydraulic System –Punching --Cutting —Output Table
Components of line:
| No. | Name | Unit | Qty |
| 1 | Decoiler | set | 1 |
| 2 | Main Machine for roll forming | set | 1 |
| 3 | Control System(PLC) | set | 1 |
| 4 | Pressing System | set | 1 |
| 5 | Cutting System | set | 1 |
| 6 | Output Table | set | 1 |
Material:
| Processing material | colored steel plate, galvanized plate, or aluminum plate |
| Material thickness | 0.3---0.8mm |
| Material hardness | 195 mpa---350 mpa |
| Forming speed | 40m/min |
| Working speed | 40m/min |
Uncoiler
| Usage |
It is used to support the steel coil and uncoil it in a turnable way. Passive uncoil pulled by roll forming system
|
| Loading capacity | 1.5T |
| Uncoiling width | as you need |
| Inner diameter | 450-550mm |
Usage:
Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.
Parameters
| Main parameters of metal stud and track roll forming machine | ||
| 1 | Length of the main part | about 5400*1400*1500mm |
| 2 | Weight of main part | 2.5T |
| 3 | Voltage | 380V/50HZ 3Phase |
| 4 | Roller fixer | middle plate |
| 5 | Frame | 350H steel |
| 6 | Drive mode | gear |
| 7 | Material of rollers | 45#steel, surface hard chromium plating |
| 8 | Material of shafts | 45#steel |
| 9 | Diameter of shafts | φ 50mm |
| 10 | Number of rollers | 12 rollers |
| 11 | Main power | 5.5kw |
| 12 | Material of mould | Cr12 quenched |
| 13 | Power supply | hydraulic power |
Cutting device
The cutting blade controled by the hydraulic system
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
| Material of blades | Cr12 quenched |
| Power supply | hydraulic power |
| Components | It contains one set of blade, one hydraulic tank and one cutter machine. |
| Power | 5.5KW |
The product we produce:
the machine naked in the container or packing as your required.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit
Guarantee: One year, and we will provide the technical support for the whole life.
