Rack Roll Forming Machine
>
|
|
| Place of Origin | Jiangsu,China |
| Brand Name | Sussman |
| Certification | CE ISO 9001 |
| Model Number | SM-TB |

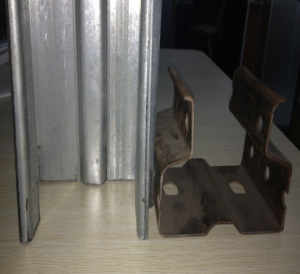

18 Rollers Rack System Galvanized Metal Storage Racking Machine for Warehouse
Roll Forming Machine Technical Parameter
Main Specifications
Suitable Plate Material: thickness 1.5-2.5mm
Material: Galvanized steel or blank steel
Working Speed: 12-15 meters / min
Forming Steps: 18 stations
Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
Driven system: Chain drive
Main Power with reducer: 11KW WH Chinese Famous
Cutting: Hydraulic Cutting Cr12mov
Material of Cutting Knife: Cr12Mov, Quench HRC58-62
Hydraulic Station Power: 5KW Wuxi Wanshen Famous Chinese Brand
The whole machine is controlled by industry computer-PLC.
PLC--Panasonic, Japan English and Chinese Language
Touch Screen--Panasonic Japan
Encoder--Omron, Japan
Electric parts--Schneider
Machine’s Components
| S.N | Equipment name |
| 1 | 3T hydraulic un-coiler |
| 2 | Leveling device 400mm |
| 3 | Servo feeding device 400mm |
| 4 | Press machineJH21-80 |
| 5 | Main roll forming machine 24 stations |
| 6 | Cutting holder |
| 7 | Hydraulic station |
| 8 | Control system ( including control box) |
| 9 | Out tables |
| 10 | Spare parts |
| 11 | Cassette Rack 80 |
| 12 | Cassette Rack 110 |
| 13 | Cutting dies |
| 14 | Punching die set |
Working Flow of Roll Forming Machine
Decoiling---Guiding and Leveling---Punching---Roll Forming----Cutting----Product Collecting

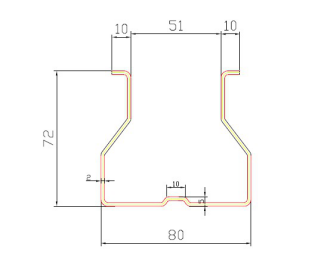

Profile drawing
Advantage for Roll Forming Machine
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Afrer-sales service
Our Company
Sussman Machinery is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.
