Stud And Track Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE,ISO,SGS |
| Model Number | SS - ST |
New Design Roof Truss Roll Roll Forming Machine with Framing Software
Specification
| specification | |
|
Size |
89*41mm |
|
Thickness |
0.75-1.2mm(G300-G550Galvanzied coils and Aluzinc ) |
|
Feeding width |
182mm |
|
Standard Producing speed |
300-700m/h |
|
Max producing speed |
1500m/h |
|
Main motor |
7.5kw |
|
Power supplier |
380V 50Hz 3phases according to your request |
|
Hydraulic station |
5.5kw |
| Box Capacity | 100L |
|
Hydraulic cooling |
Fan cooling |
|
Hydraulic pressure |
computer set |
| wireless control | Standard |
|
Frame and punching dies |
Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting |
| precision | 0.5mm |
| Ink-jet printer | EC-JET |
| Machine size | 4900*1000*1500mm |
| machine Weight | 5000kg |
| Color | according to your request |
|
De-colier |
2000kg bearing 2 tonne, automatical decoiler |
Main Characteristics
1. 17 inch color industrial grade computer can choose keyboard, mouse or touch screen operation. Switching manual or automatic function at will.
2. With different languages to choose in operation interface, it’s easy to handle output data in design software can be copy by USB or teletransmission by Internet.
3. Read design data directly while in production, without manual intervention.
4. Real-time monitoring whole production process by graphics, which can show which work piece is working, the length, pcs and material condition etc.
Profile Drawing:

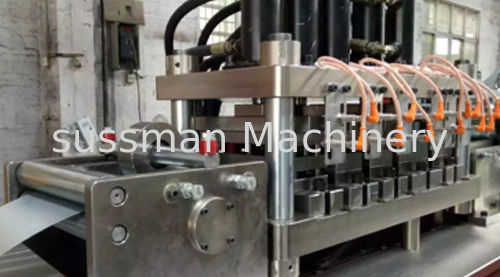

Machine components:
