|Material Thickness:||0.3-1.0mm G550 Galvanized Coils||Roller Stations:||12stations|
|Main Motor Power:||7.5Kw||Hydraulic Cutting Power:||4Kw|
|Machine Weight:||About 3.5 Tons||Machine Size:||4500mm *500mm * 800mm|
|Voltage:||380V, 50HZ, 3phase||Roller Material:||45# Steel, Coated With Chrome, Quenching|
metal stud and track roll forming machine,
metal stud forming machine

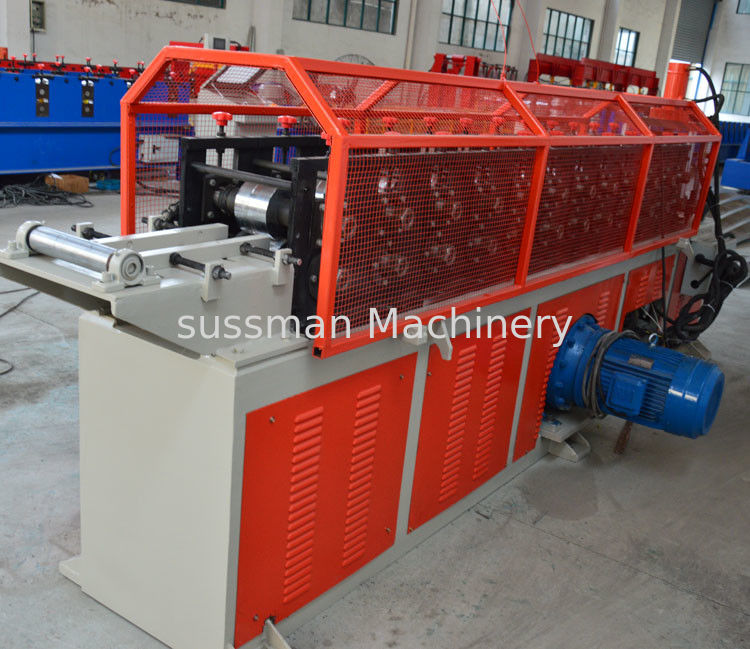

G550 Galvanized Coils Omega Grafting Stud And Track Roll Forming Machine Hydraulic Cutting 4KW
1. Technical Parameter
|1.1||Rolling speed||12m/min(not include cutting time)|
|1.3||Raw material||G550 Galvanized coils|
|1.4||Voltage||380V, 50HZ, 3phase|
|1.6||Main motor power||7.5kw|
About 12 stations
|1.8||Roller material||45# steel, coated with chrome, Quenching|
|1.9||Shaft diameter||Φ60mm ,material is 45# forge steel|
|1.10||Transmission||By chain 1 inch|
|1.12||Material of chain||45# forged steel with frequency quenching, 12A|
|1.13||Material of cutting||Cr12Mov with quench HRC58-62°|
|1.15||Frame||H type steel|
2. Working Flow
Decoiler---Feeding with guide-----Rollforming——Punching&Cutting—Products collecting
3. Machine Components
|3 tons manual decoiler||1 set|
|Feeding with guide||1 set|
|Hydraulic Cutting device||1 set|
|Main roll forming machine||1 set|
|PLC control box||1 unit|
|Hydraulic station||1 unit|
|Out tables||2 units|
|Spare parts||1 package|
4. Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
1.if the machine works wrong, how your company resolved?
Your problems will be solved at first time. We have professional engineer abroad.
2.how long the warranty period?
12 months. In the warranty period, we supply the new parts to replace the broken
Parts for free. After warranty, we supply the whole life service.
3.what information you need before quote me?
We need profile drawing of the panel you want, the thickness of panel and other your special requirements.
4.what payment terms you accept?
Commonly is T/T, 30% deposit and 70% before shipment, and sometimes we will consider as per your request.
5.can you be responsible for transport?
Please tell me the destination port or address. We have rich experience in transport.
6.how can i trust you?
The core of our company culture is honesty and credit.
