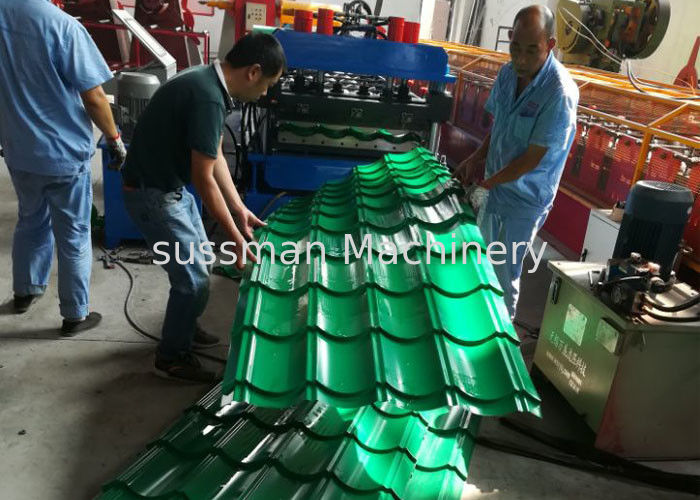

Automatic Glazed Tile Roll Forming Machine , Step Tile Making Machine 380V 50HZ

Automatic Glazed Tile Roll Forming Machine , Step Tile Making Machine 380V 50HZ
Automatic Glazed Tile Roll Forming Machine , Step Tile Making Machine 380V 50HZ Automatic Glazed Tile Roll Forming Machine , Step Tile Making Machine 380V 50HZ Automatic Glazed Tile Roll Forming Machine , Step Tile Making Machine 380V 50HZ

Large Image :  Automatic Glazed Tile Roll Forming Machine , Step Tile Making Machine 380V 50HZ

Product Details:

Place of Origin: Wuxi Jiangsu China
Brand Name: Sussman
Certification: CE ISO SGS
Model Number: SM-RP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard packing
Delivery Time: 65 days after deposit
Payment Terms: T/T L/C
Supply Ability: 10 sets per months
Detailed Product Description
Forming Speed: 0-12m/min Hydraulic Power: 5.5Kw
Material Thickness: 0.4-0.7mm Color Steel Or Galvanized Steel Machine Weight: About 5 Tons
Roller Statione: 16 Stations Press Mould: Yes
Cutting Material: Cr12 Mov Roller Material: 45# Forge Steel, Coated With Chrome
High Light:

metal roof roll forming machine

,

roof tile roll forming machine

Automatic Tile Machine for Sale/ Ceramic Tile Glazing Machine 380V 50 HZ


Glazed tile Technical Parameter



Name Description
Sheet Thickness 0.4-0.7mm Color Sheet
Sheet width 1000mm
Roller Stations 16 stations
Way Of Drive 1.2 inch single chain
The speed of the roll forming machine 0-12m/min
Roller Material 45# forge steel, coated with chrome
Shaft Material and DIA ¢76mm, material is 45# forge steel
Main Motor Power 7.5kw
Error of Cutting Distance of Glazed Tile ±1-2mm



Glazed tile  Main Components


     S.N

   Equipment name


   Quantity

      1.

    Feeding and leveling device


    1 set

      2.

    Main roll forming machine


    1 set

      3.

     5 tons passive decoiler

     1 set

      4.

    Hydraulic station


    1 set

      5.

    Control system (including control box)


    1 set

      6.

    Spare parts


    1 package

















Glazed tile working flow

Automatic Glazed Tile Roll Forming Machine , Step Tile Making Machine 380V 50HZ 0



Application


The finished products are widely used in garden-like factories, tourist scenic spots, pavilions and pavilions, hotel villas, exhibition halls, resorts, resorts and so on. It has many advantages, such as beautiful scenery, Home and other architectural and outdoor decoration.
Automatic Glazed Tile Roll Forming Machine , Step Tile Making Machine 380V 50HZ 1



Our workshop



Automatic Glazed Tile Roll Forming Machine , Step Tile Making Machine 380V 50HZ 2Automatic Glazed Tile Roll Forming Machine , Step Tile Making Machine 380V 50HZ 3

Automatic Glazed Tile Roll Forming Machine , Step Tile Making Machine 380V 50HZ 4
