Building Material Roof Panel Roll Forming Machine , Trapezoidal Profile Sheet Roofing Machine
  • Building Material Roof Panel Roll Forming Machine , Trapezoidal Profile Sheet Roofing Machine
  • Building Material Roof Panel Roll Forming Machine , Trapezoidal Profile Sheet Roofing Machine
  • Building Material Roof Panel Roll Forming Machine , Trapezoidal Profile Sheet Roofing Machine
  • Building Material Roof Panel Roll Forming Machine , Trapezoidal Profile Sheet Roofing Machine

Building Material Roof Panel Roll Forming Machine , Trapezoidal Profile Sheet Roofing Machine

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number SM-RF
Product Details
Thickness Of Sheet:
0.3-0.8mm
Width:
1000mm
Way Of Drive:
1.2inch Chain
Main Motor Power:
7.5Kw
Forming Speed:
8-12m/min
Roller Stations:
About 16 Rollers
Motor Power:
7.5KW
Hydraulic Station:
5.5KW
High Light:

metal roof roll forming machine

,

roof tile roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
60days after deposit
Supply Ability
10 sets per month
Product Description

Building Material Trapezoidal Profile Roof Sheet Roll Forming Machine 1000mm





Technical Parameter



S.N Items Descriptions
1  Control PLC Delta or Panasonic
2 Steel sheet Thickness 0.3-0.8mm color painted sheets and galvanized steel
3 Coil width 1000mm
4 Rolling Speed 8-12m/min
5 Roller Stations about 16 stations
6 Roller Material 45# forge steel, coated with chrome
7 Shaft Material and DIA ¢76mm,material is 45# forge steel, Chrome with quenching
8 Main Motor Power 7.5kw Anhui wannan Brand
9 Hydraulic Pressure 12Mpa
10 Wall plate thickness 16mm
11 Tolerance +-1.5mm
12 Power supplier 380V, 50HZ,3 phase
13 Way Of Drive 1 inch single chain
14 Color Of The Machine Blue
15 The size of the forming machine 8700mm×1622mm×1400mm
16 Machine weight 8000kg





Machine Component



5T hydraulic de-coiler

1 set

PLC Control box

1 set

Main roll forming machine

1 set

Press mould

1 set

Hydraulic cutting device

1 set

Out put tables

1 set
Spare parts 1 set
Safety cover 1 set





Advantage



1. The surface of the final product is very smooth and beautiful without any scratch on the surface.

2. Customized:design the machine according to your specification and profile drawing.(for your reference)

3. It is unit one, hydraulic station and control box is under machine frame to save more space

4. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.

5. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .
6. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
7. Cutter blade: Cr12 mould steel with quenched treatment, long life time.







Application



The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

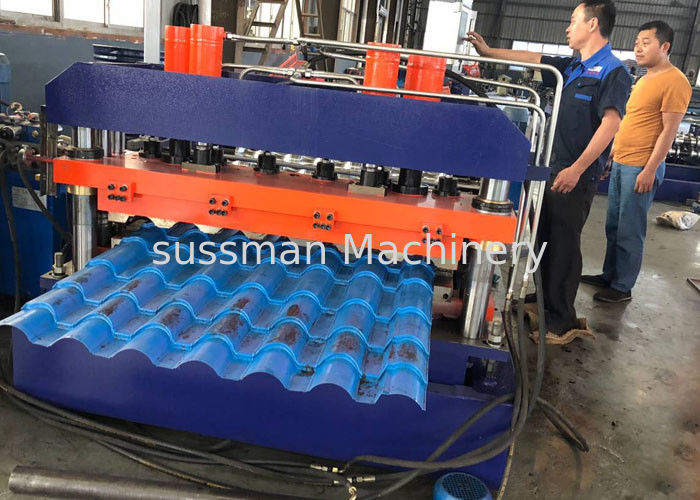

Machine photo

Building Material Roof Panel Roll Forming Machine , Trapezoidal Profile Sheet Roofing Machine 0

Building Material Roof Panel Roll Forming Machine , Trapezoidal Profile Sheet Roofing Machine 1

Building Material Roof Panel Roll Forming Machine , Trapezoidal Profile Sheet Roofing Machine 2
