Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE,SGS,ISO |
| Model Number | SM-GT |

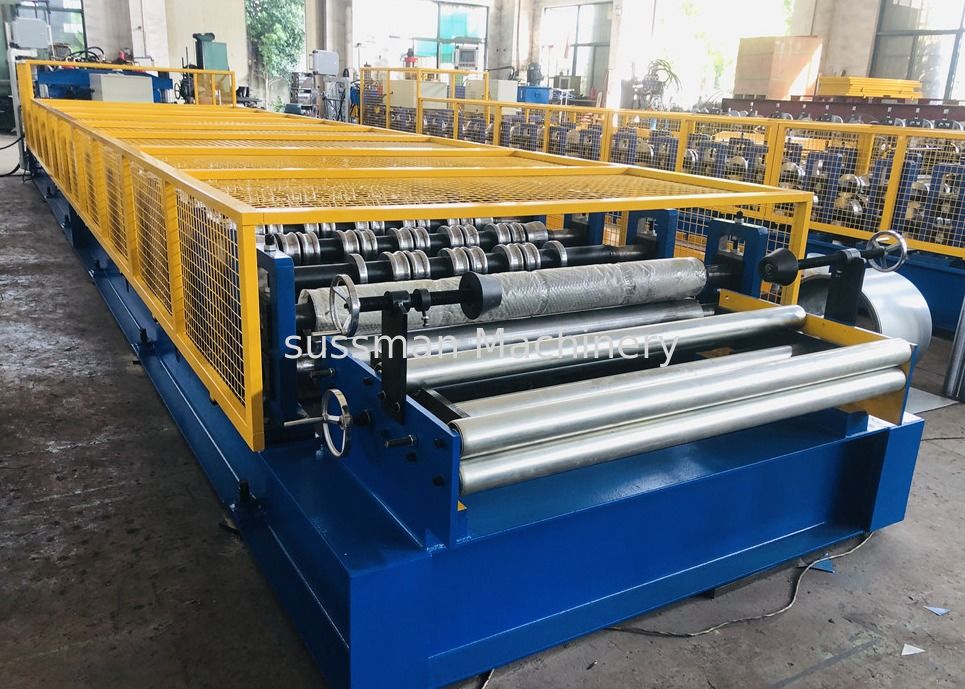

1.2 Inch Single Chain Drive Glazed Tile Roll Forming Machine With Material Width 1000mm
Glazed Tile Technical Parameter
| Type | Roll former for tile roof profile |
| Shearing Thickness | Up to Max. 0.8mm |
| Thickness | 0.5mm-0.8mm |
| Feeding Width | 1220mm |
| Frame Design | Wall-plate-frame-design /New-stand-frame-design |
| Roll Stages | 16 stages |
| Material Of Forming Roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75mm |
| Main Motor Power | 7.5KW |
| Max. Line Speed of Roll Former | Approx. 4m/min (stair length 350mm, production length 6m) |
| Hydraulic Group Power | 7.5KW |
| Material of Cutting Blade | Cr12, hear treatment |
| Electric Standard | 380V /50Hz/3PH or as per customer's requirements |
| Machine Dimensions | 9500mm×1960mm×1580mm |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer's requirements |
Glazed Tile Main Components
This tile forming machine is the special roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer’s requirement, automatically cut to length. This equipment has many advantages, like high forming speed, low noise, stable transmission, easy operation, good look and so on.
| S.N |
Equipment name |
Quantity |
| 1. |
5T passive un-coiler(optional) |
1 set |
| 2. |
Main roll forming machine 16 stations drived by chain |
1 set |
| 3. |
Hydraulic cutting |
1 set |
| 4. |
Control system (including control box) |
1 set |
| 5. |
Out tables |
2 sets |
Working Flow of Glazed Tile
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Profiles of Glazed Tile
Terms of Payment
Payment:30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 60 days after receipt of advance payment
Our Service
Guarantee period: 12 months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and CD to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
