Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE,SGS,ISO |
| Model Number | SM-GT |

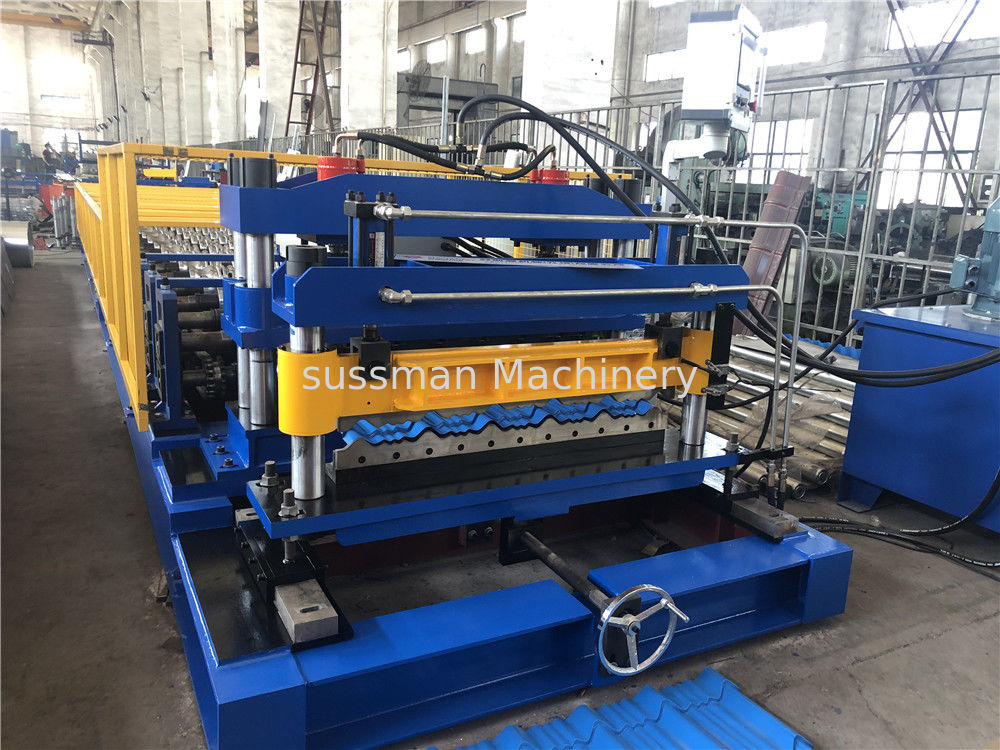

1.2 Inch Single Chain Drive Glazed Tile Roll Forming Machine With Material Width 1000mm
Glazed Tile Technical Parameter
| Type | Roll former for tile roof profile |
| Shearing Thickness | Up to Max. 0.8mm |
| Thickness | 0.4mm-0.8mm |
| Feeding Width | 1220mm,826mm |
| Frame Design | Wall-plate-frame-design /New-stand-frame-design |
| Roll Stages | 16 stages |
| Material Of Forming Roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75mm |
| Main Motor Power | 7.5KW |
| Max. Line Speed of Roll Former | Approx. 4m/min (stair length 350mm, production length 6m) |
| Hydraulic Group Power | 7.5KW |
| Material of Cutting Blade | Cr12, hear treatment |
| Electric Standard | 380V /50Hz/3PH or as per customer's requirements |
| Machine Dimensions | 9500mm×1960mm×1580mm |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer's requirements |
Glazed Tile Main Components
This tile forming machine is the special roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer’s requirement, automatically cut to length. This equipment has many advantages, like high forming speed, low noise, stable transmission, easy operation, good look and so on.
|
Decoiler
|
1set
|
|
Roll Forming Machine
|
1set
|
|
Pressing Device
|
1set
|
|
Hydraulic Cutting Device
|
1set
|
|
Control System
|
1set
|
|
Output Table
|
1set
|
Working Flow of Glazed Tile
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Profiles of Glazed Tile
Our Service
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.
