Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE,SGS,ISO |
| Model Number | SM-RP |

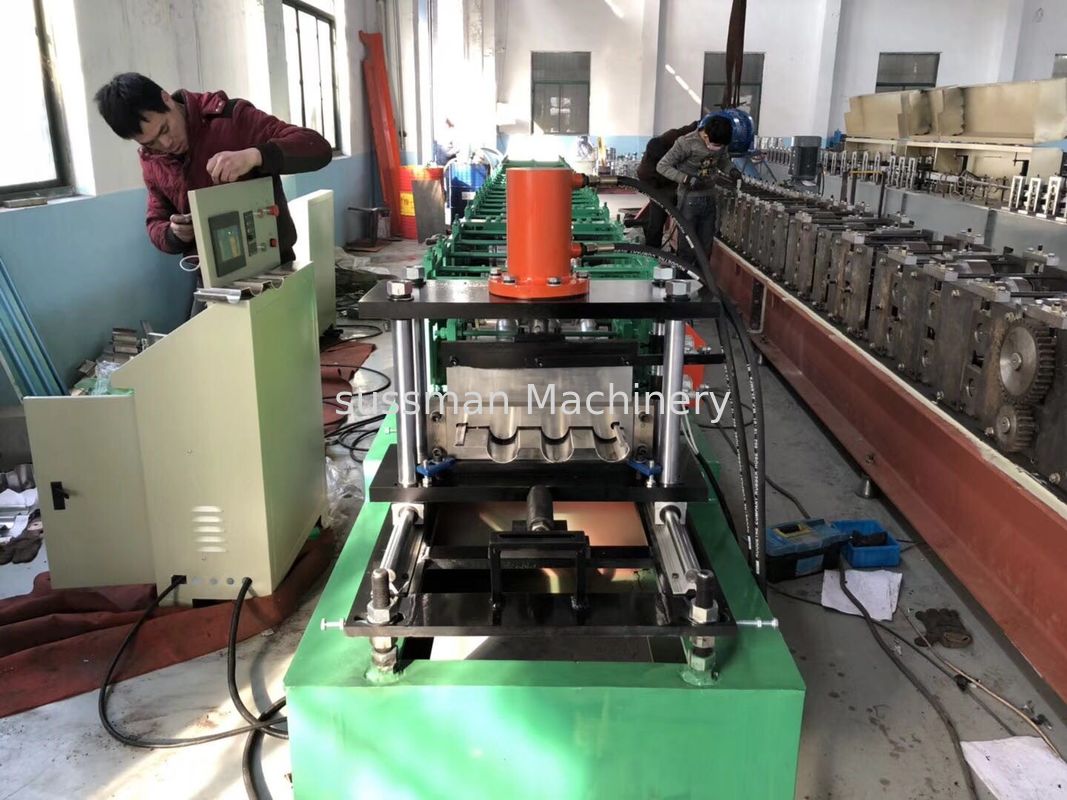

Plc Control Color Painted Steel Metal Wall Sliding Panel Roll Forming Machine For Roof Ceiling
Tile Technical Parameter
| Type | Roll former for tile roof profile |
| Shearing Thickness | Up to Max. 0.8mm |
| Thickness | 0.3mm-0.6mm |
| Feeding Width | customized |
| Frame Design | Wall-plate-frame-design /New-stand-frame-design |
| Roll Stages | 20 stages |
| Material Of Forming Roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75mm |
| Main Motor Power | 7.5KW |
| Max. Line Speed of Roll Former | Approx. 4m/min (stair length 350mm, production length 6m) |
| Hydraulic Group Power | 7.5KW |
| Material of Cutting Blade | Cr12, hear treatment |
| Electric Standard | 380V /50Hz/3PH or as per customer's requirements |
| Machine Dimensions | 9500mm×1000mm×1200mm |
Glazed Tile Main Components
This tile forming machine is the special roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer’s requirement, automatically cut to length. This equipment has many advantages, like high forming speed, low noise, stable transmission, easy operation, good look and so on.
| S.N | Equipment name | Quantity |
| 1. | 5T passive un-coiler(optional) | 1 set |
| 2. | Main roll forming machine | 1 set |
| 3. | Hydraulic cutting | 1 set |
| 4. | Control system (including control box) | 1 set |
| 5. | Out tables | 2 sets |
Working Flow of Tile
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Profiles of Glazed Tile
