Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
0.7-1.2mm Color Steel Roof Panel Standing Seam Roll Forming Machine 8-12m/min
1. Technical Parameter
|
No.
|
standing seam profiling machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil/Aluminium Coil
|
|
2
|
Roller
|
16 Rows
|
|
3
|
Dimensions
|
7.0*1.3*1.55m
|
|
4
|
Motor Power
|
7.5Kw
|
|
5
|
Pump Station Motor
|
5.5Kw.
|
|
6
|
Thickness of the plate
|
0.6-1.2mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ75mm
|
|
10
|
Weight
|
About 6000kgs
|
|
11
|
Main structure of the machine
|
400H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
20mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer's need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
2. Machine List
|
5 tons passive de-coiler |
1 set |
|
Guiding Platform |
1 set |
|
Main roll forming machine |
1 set |
|

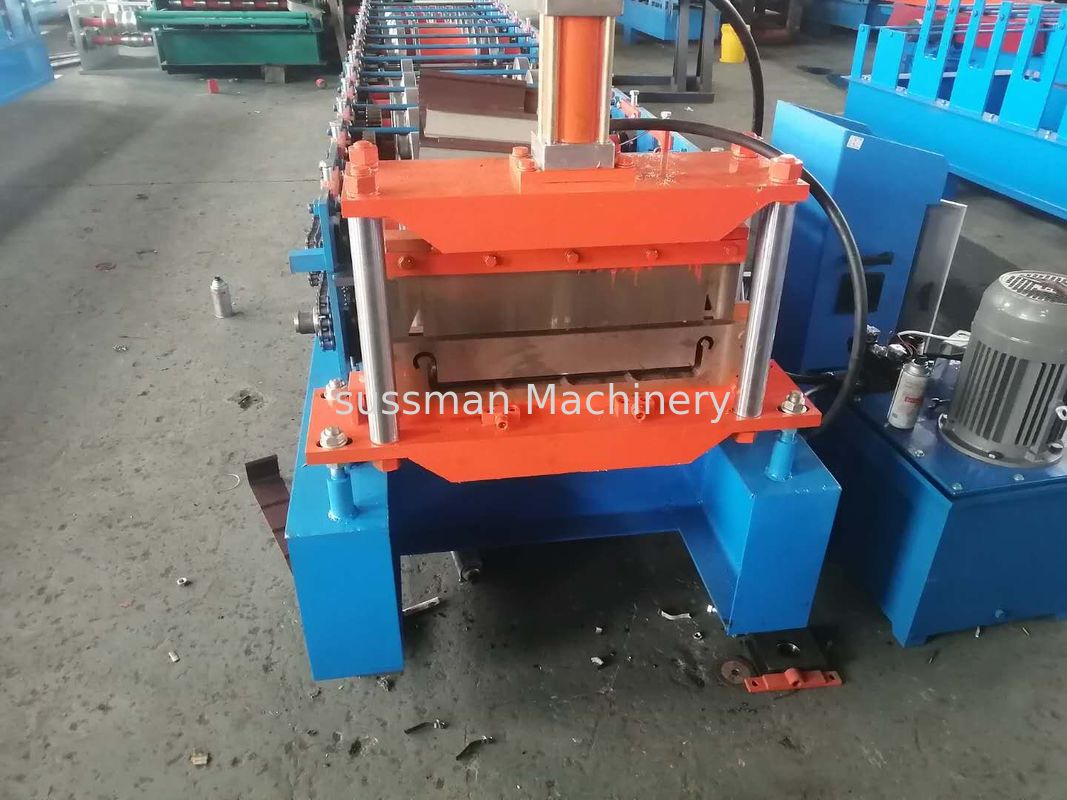

Cutting machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
Passive Out table |
2 units |
|
Safety cover |
1 unit |
3. Profile Drawing
4. Application
This machine is used to form the pre-painted sheet/GI material to be the standing seam for various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.
5. Packaging & Shipping
1. Before loading to the container, we will check the machine first
2. To make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
3. We will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container.
