PPGI 0.5mm Metal Roofing Roll Forming Machine Compact Design
  • PPGI  0.5mm Metal  Roofing Roll Forming Machine Compact Design
  • PPGI  0.5mm Metal  Roofing Roll Forming Machine Compact Design
  • PPGI  0.5mm Metal  Roofing Roll Forming Machine Compact Design

PPGI 0.5mm Metal Roofing Roll Forming Machine Compact Design

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number SM-DF
Product Details
Forming Speed:
30-40m/min
Way Of Drive:
Gearbox Chain
Roller Stations:
About 22 Roller Stations
Main Motor Power:
18.5kw
Material:
Galvanized Steel, PPGI 0.2-0.5 Mm
Use:
Roof
Auto Stacker:
6m
Roller Material:
45#steel Chrome Plated
High Light:

0.5mm roofing roll forming machine

,

PPGI roofing roll forming machine

,

0.5mm metal roofing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
75 days after deposit
Supply Ability
10 sets per month
Product Description

0.2-0.5 Mm Material Thickness Auto Stacker 6m Building Material Roofing Tile Roll Forming Machine





SPECIFICATIONS FOR ROOFING ROLL FORMING MACHINE



Machine specification
Electric power kW 18.5
Rolling speed   30-40m/min
Machine Weight Tons 10Tons
Machine Dimensions m 9.5 m x 1.8 m x 1.5 m
Station quantity stations 18-24 stations


Raw material
Steel Thickness (BMT) mm

0.2-0.8 mm
Coil Width mm 914-1450 mm
Material Strength   G300–G550
Material   GI, GL, PPGI, PPGL



Production specification
Control system   PLC, Touch Screen HMI
Cutting system   Hydraulic
Rolling transmission   Gear motor, driven by Inverter
Option   Entrance shearer
Length Tolerance mm ± 2.0 mm





Machine Component



10 tons hydraulic de-coiler with coiler car

1 set

Main roll forming machine

1 set

Pre cutting device

1 set

PLC Control box

1 set

Hydraulic station

1 set

4 meters conveyor

1 set

6 meters auto stacker

1 set
servo following cutting device 1 set
Servo motor 1 set



Main Features



1) Easy in installation and maintenance.

2) Hardened structural steel and components provide long life and safe operational stability.

3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.

4) Running in an automation, high durability and stability.

5) Compact design, meet custom demands.



Rollers

Sussman Rollers are custom designed and machined precisely by state-of-the-art CNC machines placed inside the factory.

Rollers are hardened through vacuum heat treatment (Taiwan technology) and chrome plating.



Frame

Frame are made by hardened steel and connected by bolts which make machinery sturdy, easy to maintain, and avoid deformation while operating.



Cutting

Shearing (Cutting) die set and Embossing die set are made by S50C or SKD, gone through vacuum heat treatment to have a longer lifespan.



Control System

Control system with intelligent PLC and HMI touch-screen helps to operate machine simply and to create identical rollformed steel sheets which present your exact specifications.

Which has applied high technology in machinery such as modern Inverter and Servo to increase speed, operate smoothly, and save energy.



Application



Tiles Making Machine are looked beautiful, elegant and noble. It can be widely used in garden-style factory, traveling scenic spots, hotel, exhibition center, villa, civil construction and so on

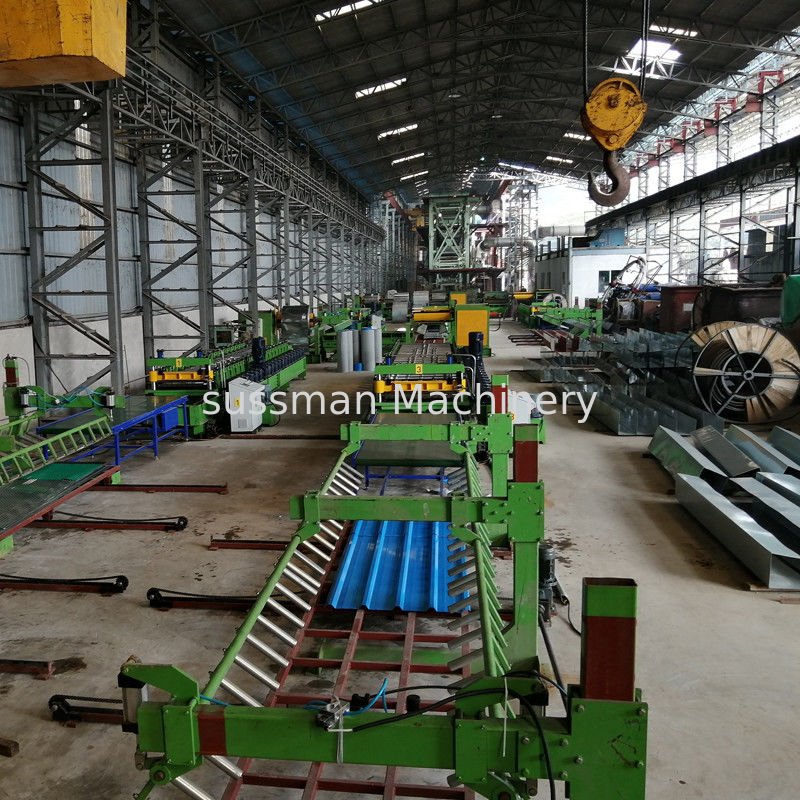

PPGI  0.5mm Metal  Roofing Roll Forming Machine Compact Design 0



PPGI  0.5mm Metal  Roofing Roll Forming Machine Compact Design 1

PPGI  0.5mm Metal  Roofing Roll Forming Machine Compact Design 2
