Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE ISO SGS |
| Model Number | SM-RP |
18*12mm Long Grid Wall Decorative Hidden Joint Panel Machine
Technical Parameter
| Items | Specifications | |
| Material of coil | Material Thickness | 0.3-1.0mm aluminium or galvanized coils |
| Profile width | Customized | |
| Profile height | Customized | |
| Un Coiler | 3 tons manual | |
| Forming system | Rolling Speed | About 10m/min |
| Roller Stations | About 16 stations | |
| Roller Material | Gcr15 coated with chrome | |
| Maim Motor Power | 7.5 kw | |
| Motor cutting Power | 4kw | |
Cutting | Material Of Cutting | CR12mov with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source | 220V, 60HZ,3 phase |
| Control System | PLC (Panasonic) as list in the note | |
| Weight | About 3 tons | |
| Way Of Drive | 1 inch chain |
Machine List
| 3 ton passive de-coiler | 1 set |
| Main roll forming machine | 1 set |
| PLC Control box | 1 unit |
| Hydraulic station | 1 unit |
| 2 sets of embossing rolls | 1 unit |
| Out table | 2 units |

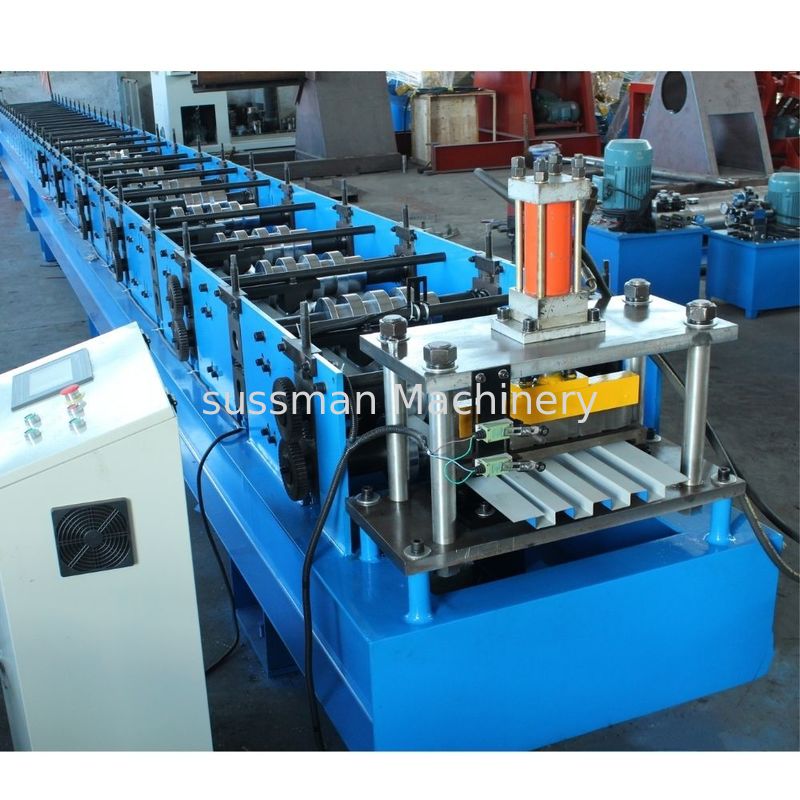

Machine Pictures
Glazed tile working flow
Profile Drawing
TANSPORTATION
All goods will be shipped to your country, containers number will be decided with how many machines you would choose.
