Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE ISO SGS |
| Model Number | SM-RP |
0-10m/Min Long Grid Wall Decorative Hidden Joint Panel Machine
Technical Parameter
| Items | Specifications | |
| Material of coil | Material Thickness | 0.3-1.0mm aluminium or galvanized coils |
| Profile width | Customized | |
| Profile height | Customized | |
| Un Coiler | 3 tons manual | |
| Forming system | Rolling Speed | About 10m/min |
| Roller Stations | About 16 stations | |
| Roller Material |
Gcr15 coated with chrome |
|
| Maim Motor Power | 7.5 kw | |
| Motor cutting Power | 4kw | |
|
Cutting |
Material Of Cutting | CR12mov with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source |
220V, 60HZ,3 phase |
| Control System | PLC (Panasonic) as list in the note | |
| Weight | About 3 tons | |
| Way Of Drive | 1 inch chain |
Machine List
| 3 ton passive de-coiler | 1 set |
| Main roll forming machine | 1 set |
| PLC Control box | 1 unit |
| Hydraulic station | 1 unit |
| 2 sets of embossing rolls | 1 unit |
| Out table | 2 units |

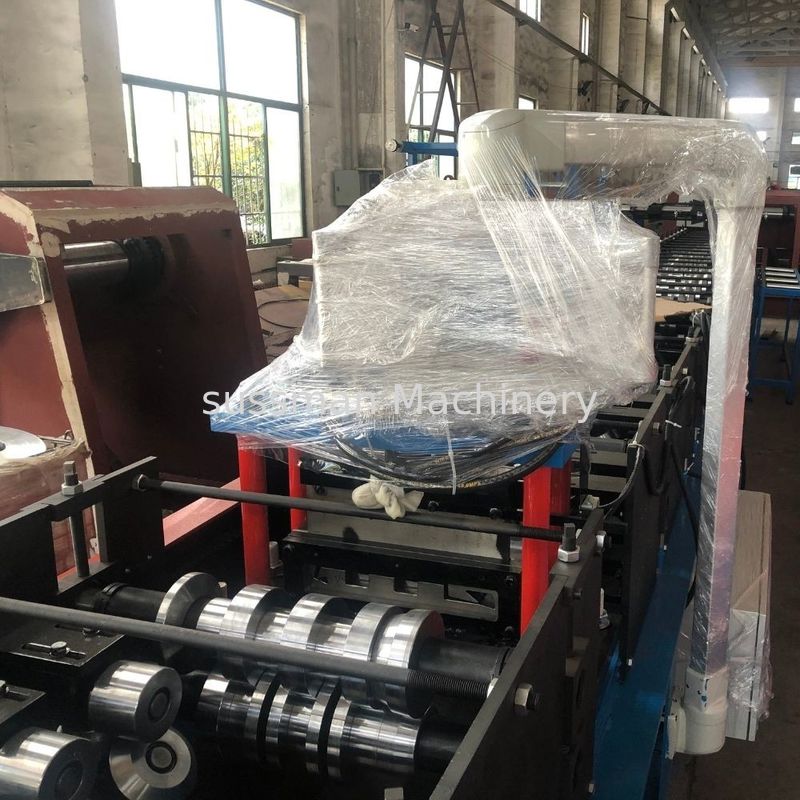

Machine Pictures
Glazed tile working flow
Profile Drawing
TANSPORTATION
All goods will be shipped to your country, containers number will be decided with how many machines you would choose.
Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipments sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipments, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipments, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts.
