Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE,SGS,ISO |
| Model Number | SM-GT |

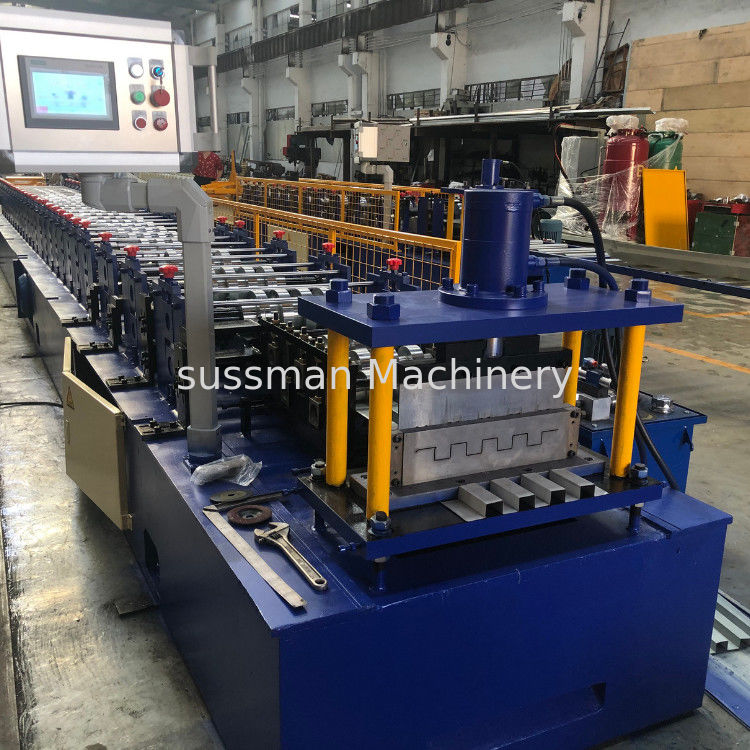

610 mm 0.4-0.8 mm Galvanized Steel PPGI Decorative Wall Panel Roll Forming Machine
Technical Parameter
| Item NO |
Description |
Offered specification |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | 10-12m/min |
| 1.2 | Rolling thickness | 0.4-0.8mm |
| 1.3 | Raw material | Galvanized steel coils or PPGI |
| 1.4 | Main motor | 7.5kw |
| 1.5 | Hydraulic motor | 5.5kw |
| 1.6 | dimension | 7500×700×1000(mm) |
| 1.7 | Roller stations | About 25 stations |
| 1.8 | Roller material | 45#forge steel, coated with chrome |
| 1.9 | Shaft diameter | Φ70mm,material is 45# forge steel |
| 1.10 | Transmission | By chain 1 inch |
| 1.11 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.12 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.13 | Tolerance | 6m+-0.5mm |
| 1.14 | Frame | H type steel |
| 1.15 | Voltage | 380v, 50hz, 3phases |
Main Components
| S.N |
Equipment name |
Quantity |
| 1. |
5T passive un-coiler
|
1 set |
| 2. |
Main roll forming machine |
1 set |
| 3. |
Hydraulic cutting |
1 set |
| 4. |
Control system (including control box) |
1 set |
| 5. |
Out tables |
2 sets |
Working Flow
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Profile drawing
Application
The finished product of wall panel is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.
It has the advantage of beautiful, classical appearance and grace taste.
