Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE,SGS,ISO |
| Model Number | SM-GT |
360 Mm Width 45# Forge Steel Roller Material Thickness Aluminum PPGI Decorative Inner Panel Roll Forming Machine
Technical Parameter
| Item NO |
Description |
Offered specification |
| 1.1 | Rolling speed | 10-12m/min |
| 1.2 | Rolling thickness | 0.4-0.8mm |
| 1.3 | Raw material | Galvanized steel or PPGI or Aluminum |
| 1.4 | Main motor | 7.5kw |
| 1.5 | Hydraulic motor | 5.5kw |
| 1.6 | dimension | About 9500×800×1000(mm) |
| 1.7 | Roller stations | About 25 rollers |
| 1.8 | Roller material | 45#forge steel, coated with chrome |
| 1.9 | Shaft diameter | Φ75mm,material is 45# forge steel |
| 1.10 | Transmission | By chain 1 inch |
| 1.11 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.12 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.13 | Tolerance | 6m+-0.5mm |
| 1.14 | Frame | H type steel |
| 1.15 | Voltage | 380v, 50hz, 3phases or customized |
Main Component
| S.N |
Equipment name |
Quantity |
| 1. |
5Tons manual un-coiler
|
1 set |
| 2. |
Roll forming machine system |
1 set |
| 3. |

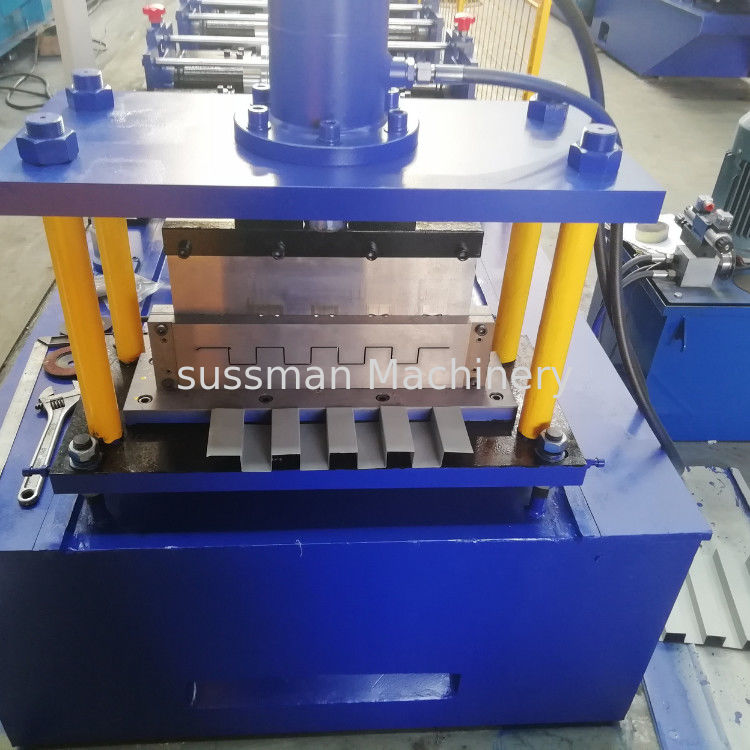

Hydraulic cutting |
1 set |
| 4. |
Control system (including control box) |
1 set |
| 5. |
Out tables |
2 sets |
Working Flow
Decoiler----Feeding with guide---Roll forming---Cutting---Run out tables
Profile drawing
Application
The finished product of wall panel is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.
It has the advantage of beautiful, classical appearance and grace taste.
