Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE,SGS,ISO |
| Model Number | SM-GT |
1220mm Width Galvanized Steel Ppgi Step Tile Roof Metal Tile Making Machine
Glazed Tile Technical Parameter
|
Type |
Roll former for tile roof profile |
|
Thickness |
0.4mm-0.8mm |
|
Feeding Width |
1220mm |
|
Frame Design |
Wall-plate-frame-design |
|
Roll Stages |
16 stations |
|
Material Of Forming Roller |
45# steel, CNC lathes, Hard Chrome Coated |
|
Shafts Diameter |
Φ75mm |
|
Main Motor Power |
7.5KW |
|
Max. Line Speed of Roll Former |
Approx 3-5 4m/min |
|
Hydraulic Group Power |
7.5KW |
|
Material of Cutting Blade |
Cr12, hear treatment |
|
Electric Standard |
380V /50Hz/3PH or as per customer's requirements |
|
Machine Dimensions |
9500mm×1600mm×1500mm |
|
Major Color of Machine Painted |
RAL 5015 (Blue) or as per customer's requirements |
Glazed Tile Main Components
|
Equipment name |
Quantity |
|
5T passive un-coiler
|
1 set |
|
Main roll forming machine |
1 set |
|

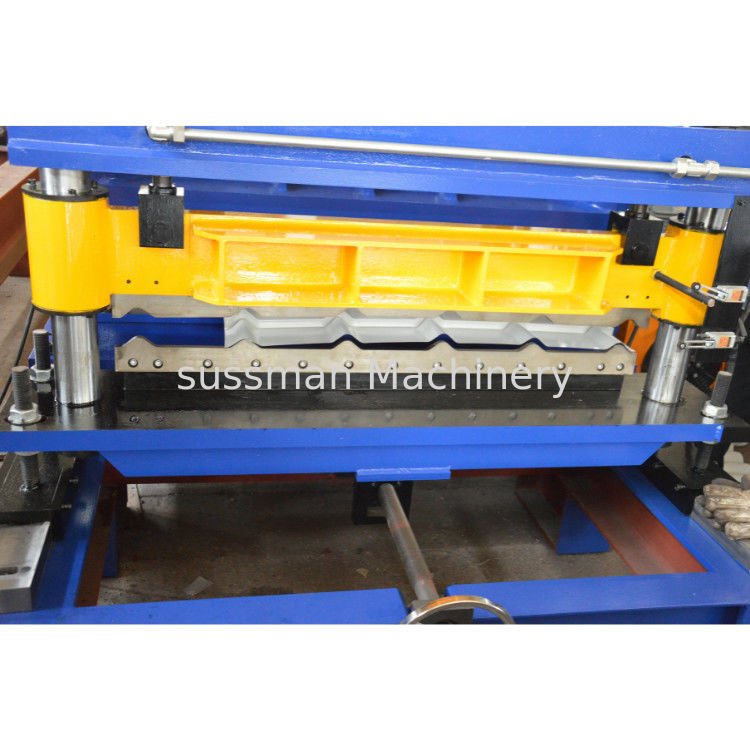

Hydraulic cutting |
1 set |
|
Control system (including control box) |
1 set |
|
Out tables |
2 sets |
Working Flow of Glazed Tile
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Application
Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.
