0.12mm Thickness Corrugated Roof Panel Roll Forming Machine

0.12mm Thickness Corrugated Roof Panel Roll Forming Machine

0.12mm Thickness Corrugated Roof Panel Roll Forming Machine

Place of Origin	China
Brand Name	Sussman
Certification	ISO 9001 SGS
Model Number	DL-RP-T

Product Details

Material Thickness:

0.12-0.3mm

Main Motor Power:

7.5KW

Tolerance:

+-1.5mm

Forming Speed:

0-40 M/min

Roller Stands:

20-22 Stations

Hydraulic Station Power:

3 KW

Highlight:

Corrugated Roof Panel Roll Forming Machine

,

0.12mm Roof Panel Roll Forming Machine

,

PLC Corrugated Panel Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1

Price

USD 30000 per set

Packaging Details

Normal packing

Delivery Time

50 days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

5 sets per month

Product Description

0.12mm-0.3mm Thickness 40 Meters/Min Corrugated Roof Roll Forming Machine With Gear Box Driven

Rolling Speed: 0-40m/min
Feeding width: 1000mm
Steel sheet Thickness: 0.12-0.3mm galvanized sheet
Control System: PLC Siemens
Roller Stations: about 20-22 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching
Motor Power: 7.5kw main motor
Hydraulic power: 3kw
Hydraulic Pressure: 12Mpa
Tolerance: +1.5mm
Power supplier: According to Customer’s Requirements
Way Of Drive:Gear Box Driven

5 tons hydraulic de-coiler	1 set
Main roll forming machine	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
Safety cover	1 set
Spare parts	1 set

Profile Drawings

0.12mm Thickness Corrugated Roof Panel Roll Forming Machine 1

Technological Process

Uncoiling—Feedingwithguide—Roll forming—Cutting—Products collecting

0.12mm Thickness Corrugated Roof Panel Roll Forming Machine 2

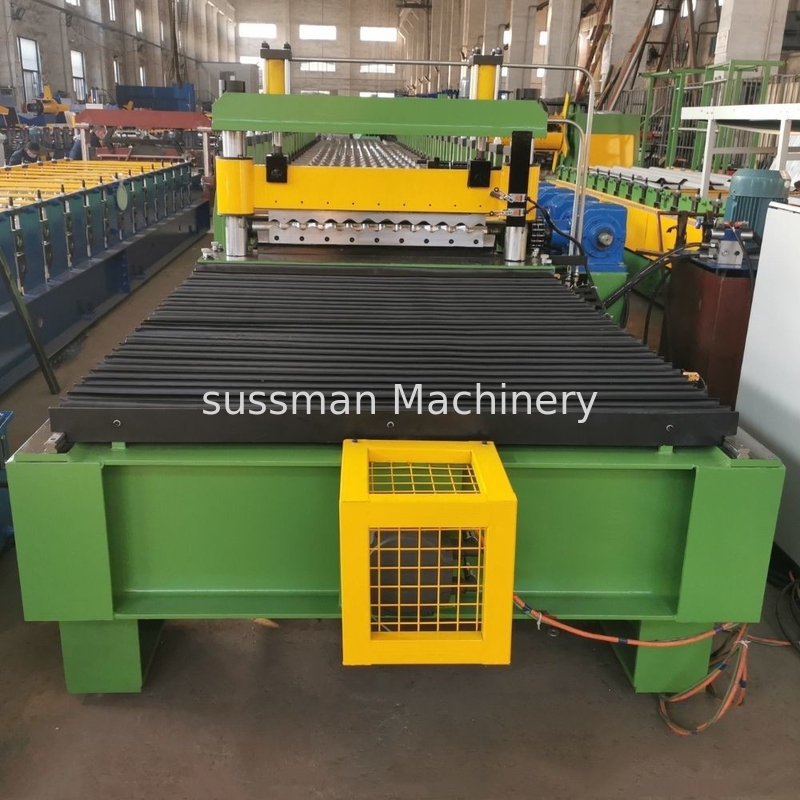

Machine Pictures
